Commodore-PC

Historia

Primer PC compatible de Commodore. Dejó de fabricarse en 1993, en Alemania, un año antes de cerrar definitivamente la empresa. Variantes: - PC-10 A basic 8088-based PC-compatible system with 1 or 2 floppy drives (page photo). - Colt A re-branded version of the PC-10 system. - PC-20 Identical to the PC-10 system, but included a 20MB hard disk. - PC-30 PC-AT 12 MHz 80286-based system including a 20MB hard disk. Probably the same machine as the PC-35 but only sold in Europe. - PC-35 Same features as the PC-30. - PC-40 PC-AT 10 MHz system with 1 MB RAM, Hercules/CGA video card, and a 20MB to 80MB hard disk. A jumper setting allowed the memory to be configured between 640KB or 512KB + 512KB of extended memory. - PC-50 80386SX 16 MHz system with a 40MB to 100MB hard disk. - PC-60 80386 25 MHz system with a tower case and a 60MB to 200MB hard disk.

Características

4.77MHz 8088 processor (without turbo clock),
single 5.25 FDD
512KB of RAM
Hercules/GCA video board

Características

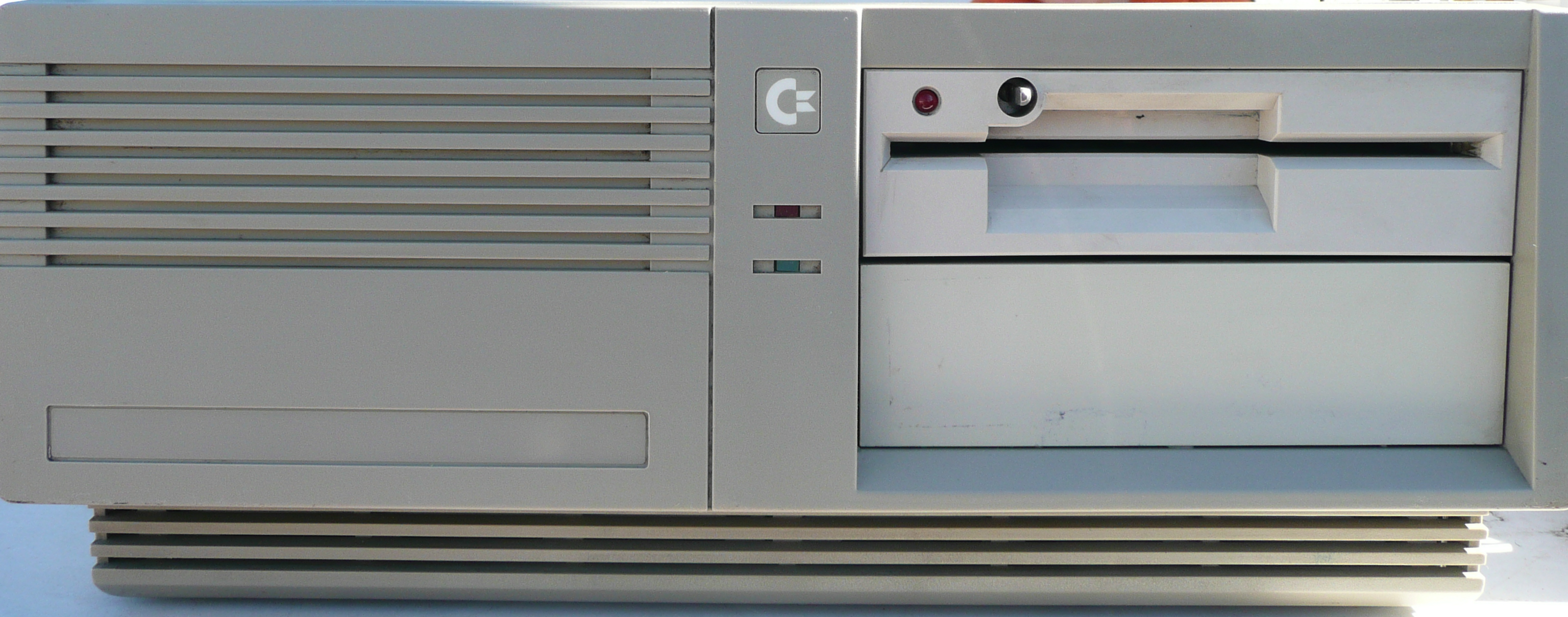

Model    : PC10-III
Processor: Intel 8088
Memoria   : 640K
Almacenamiento  : Dual 5.25 drives, 10mb hd
Video    : Composite and color RGBI
Notes    : Upgraded to 4 parallel ports
Lenguajes   None
Teclado   84 Teclas (8088 systems), 102 Teclas (286 and above)
CPU   8088, 80286, 80386-SX, 80386
Velocidad   4.77 to 9.54 MHz (8088), 6 to 12 MHz (80286), 8 to 16 MHz (386SX), 25 MHz (80836)
Co-procesador   Optional Math coprocessor
RAM   640 KB to 2 MB according to models
Modos de Texto   40 or 80 chars x 25 lines
Modo gráfico   From GCA (640 x 200) to SVGA (800 x 600), Hercules monochrome as well
Colores   16 minimum in colour systems
Sonido   Tone generator
Almacenamiento interno   360 KB to 1.44 MB floppy discs, 20 to 200 MB hard disc
OS   All the available PC Sistema operativos
Fuente de alimentación   Built-in Fuente de alimentación unit
Perifericos   all 8, 16, 32 bit PC cards
