PanasonicNational

Historia

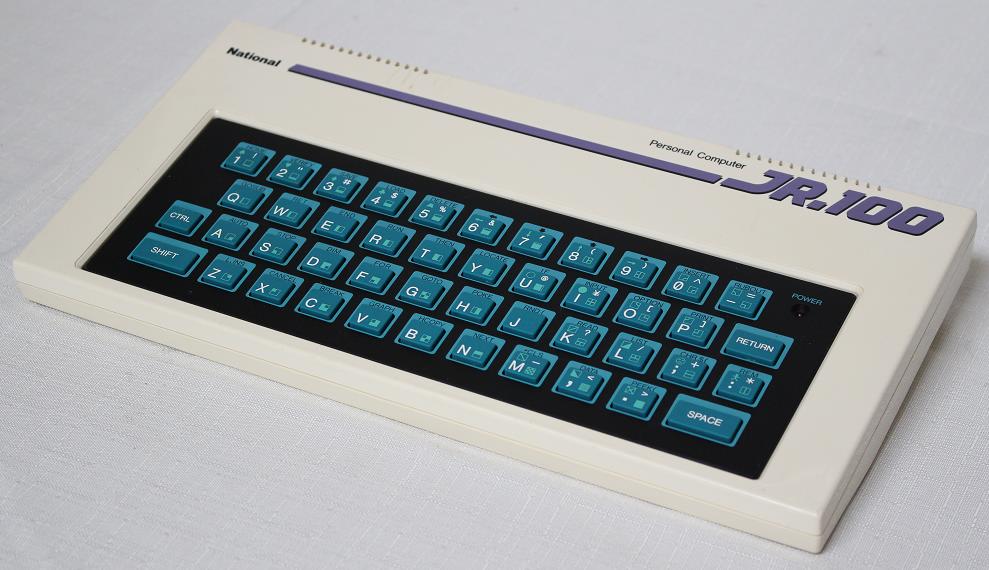

The National (also known as Panasonic or Matsushita in other countries) JR series was pretty popular in Japan. Small quantities were sold outside Japan, in New Zeland among other countries. Little is known about the first system of the range (please help!). It was obviously an initiation machine with black & white display and rubber keyboard. The JR 100 was followed by the JR 200.

Características

Lenguajes  	Basic interpreter
Teclado  	Poor rubber Teclado
CPU  	MN 1800A (6802 compatible)
Velocidad  	890 KHz
RAM  	16 KB (up to 32 KB)
VRAM  	1 KB
ROM  	8 KB
Modos de Texto  	32 chars. x 24 lines
Modo gráfico  	64 characters with 6 x 7 dot matrix, 64 semi-graphic characters with 8 x 8 matrix, 32 User Defined Graficos with 8 x 8 matrix
Colores  	Monochrome
Sonido  	Buzzer
Puertos de entrada/salida  	Monitor, Expansion, Tape
Almacenamiento interno  	None
Fuente de alimentación  	Model JR-A12 Alimentacion adaptor., Output: +7.8V (700 mA), -8V (10 mA), +17V (130 mA)
Perifericos  	An expansion unit (JR-U05) was created which added an extra 16 KB RAM, joystick and RS232 port. It was only available in Japan.
Precio  	NZ$299 when introduced in New Zeland in 1983

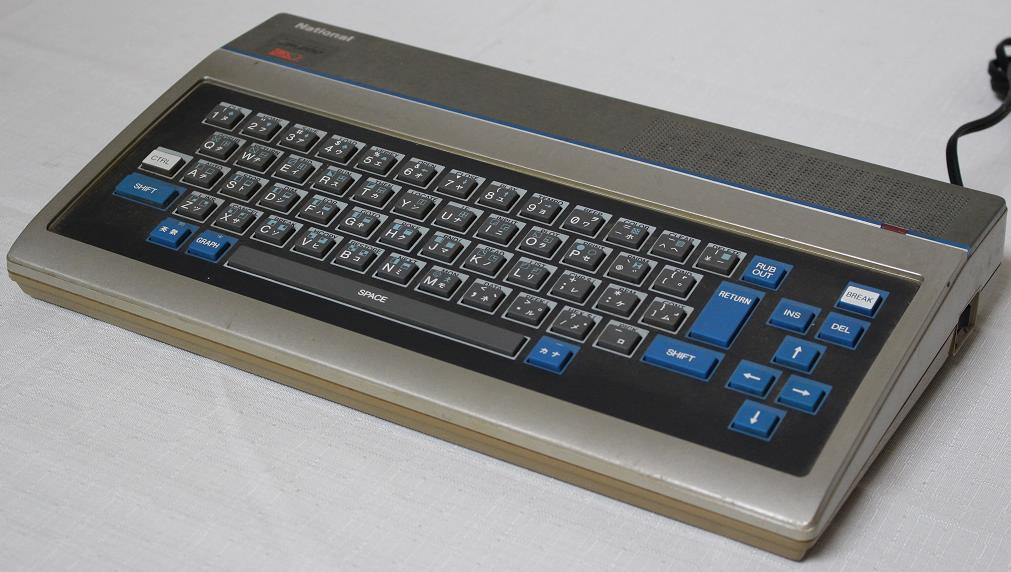

Características

Lenguajes  	JR Basic 5.0
Teclado  	Chicklet Teclado with basic statements printed on the Teclas, 64 Teclas
CPU  	MN 1800A (6802 compatible)
Co-procesador  	MN1544
RAM  	36 KB (32 KB + 2 KB for graphic characters + 2 KB VRAM)
VRAM  	2 KB
ROM  	16 KB
Modos de Texto  	32 x 24
Modo gráfico  	64 x 48
Colores  	16
Sonido  	3 voices, 5 octaves
Tamaño/Peso  	348 × 208 × 56 mm / 1,7 Kg
Puertos de entrada/salida  	RF video out, Composite video out, RF video out, Expansion, Tape (600/2400 bauds), RS-232c/printer port
Almacenamiento interno  	None
Fuente de alimentación  	AC100V 50/60Hz, 8w
Perifericos  	JR-F11 floppy disk-drive, JR-U07 Joystick interface, JR-U05 RS232 interface, JR-PO1 Centronics interface
