PhilipsMagnavox-OdysseyVideopac

Historia

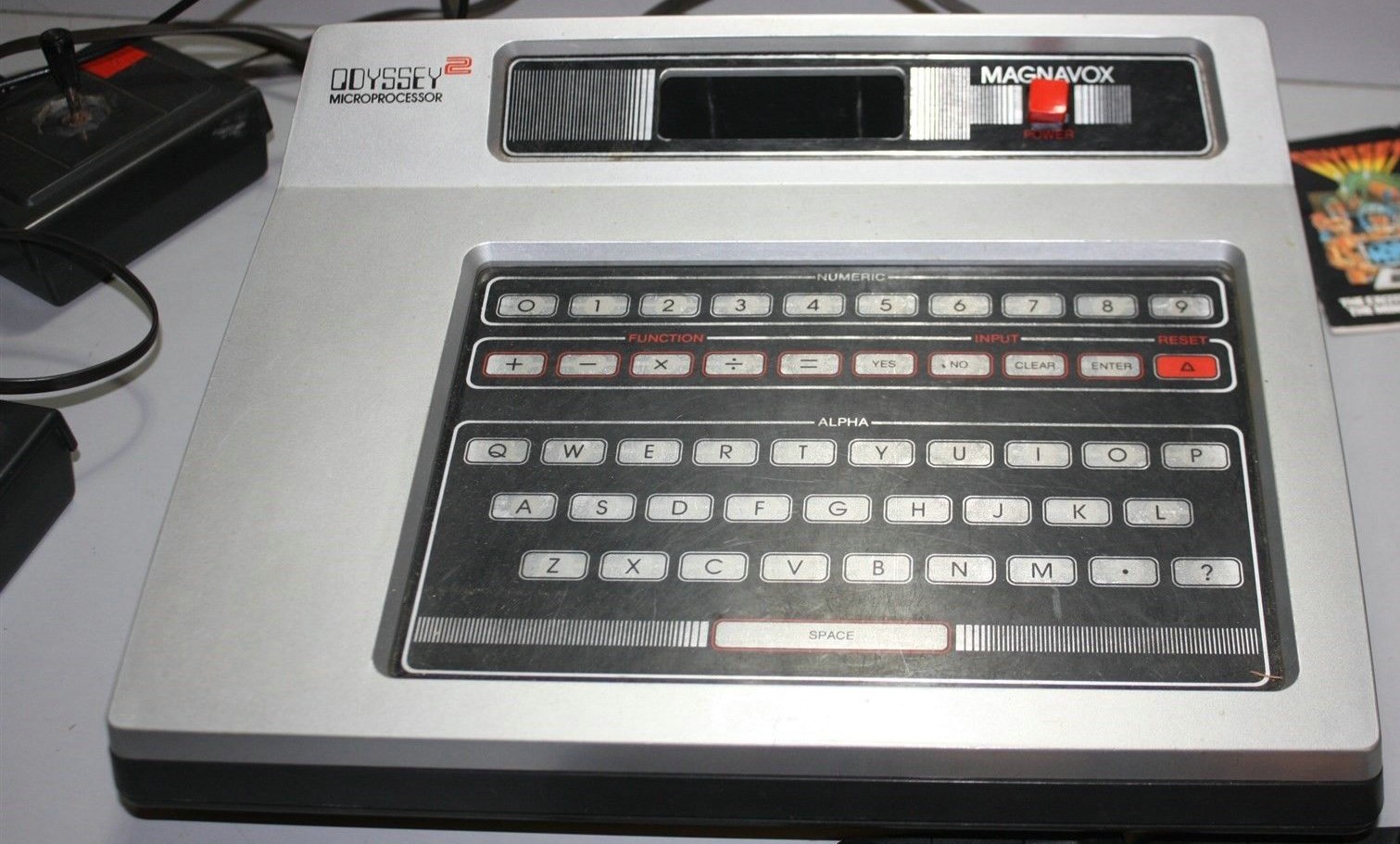

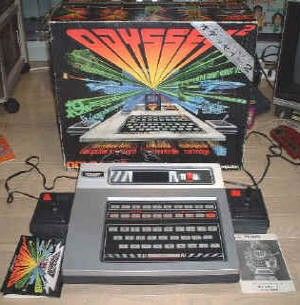

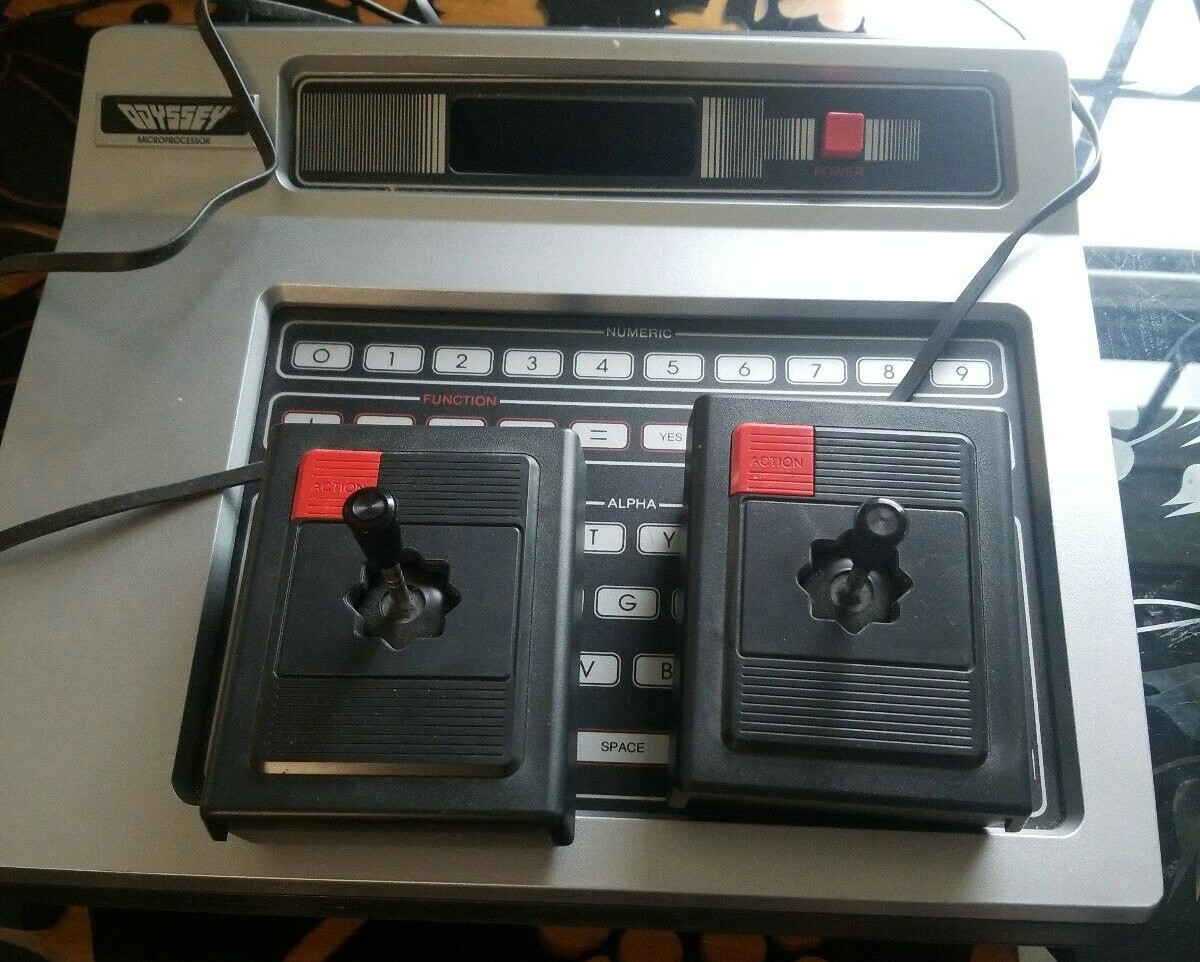

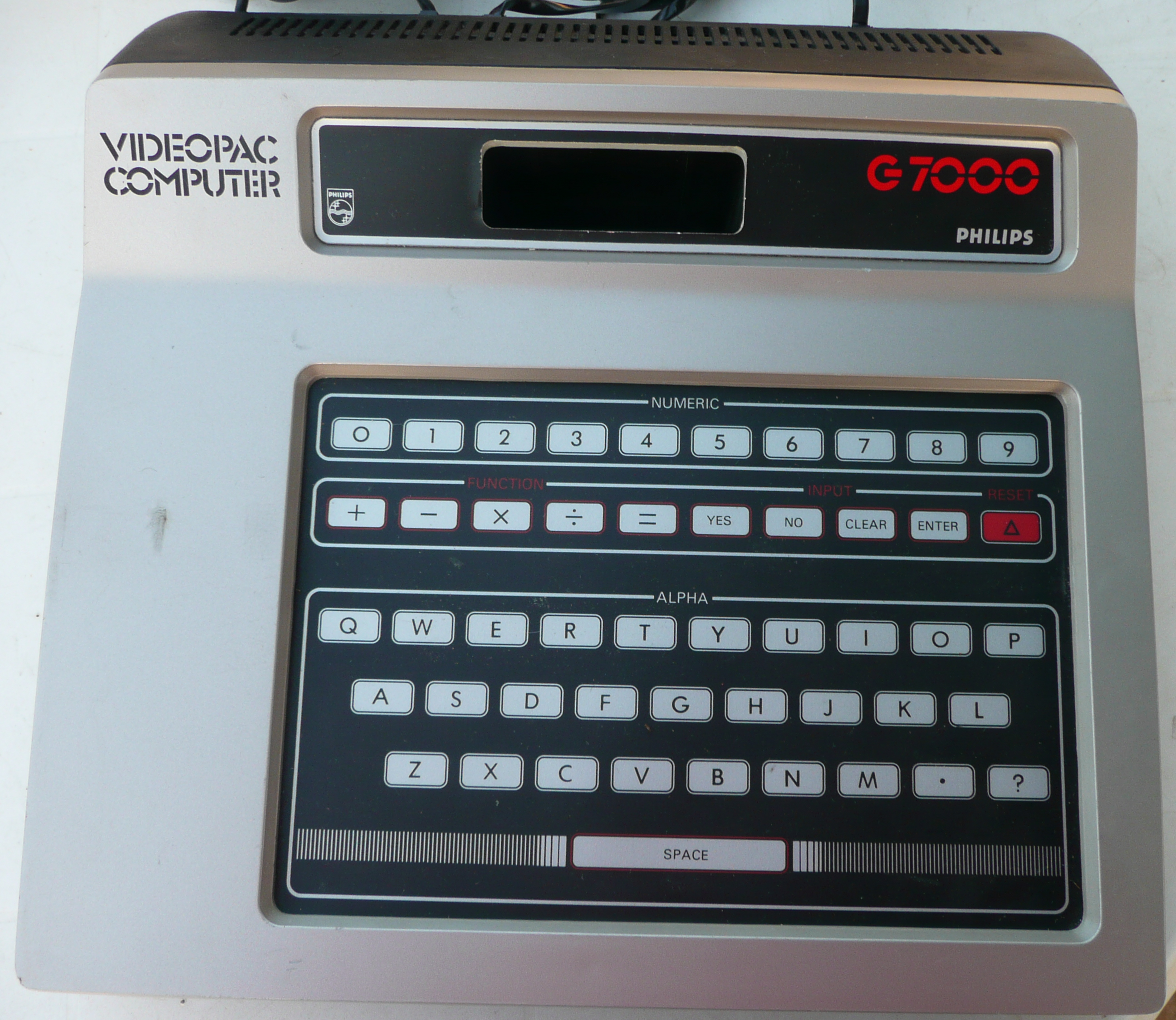

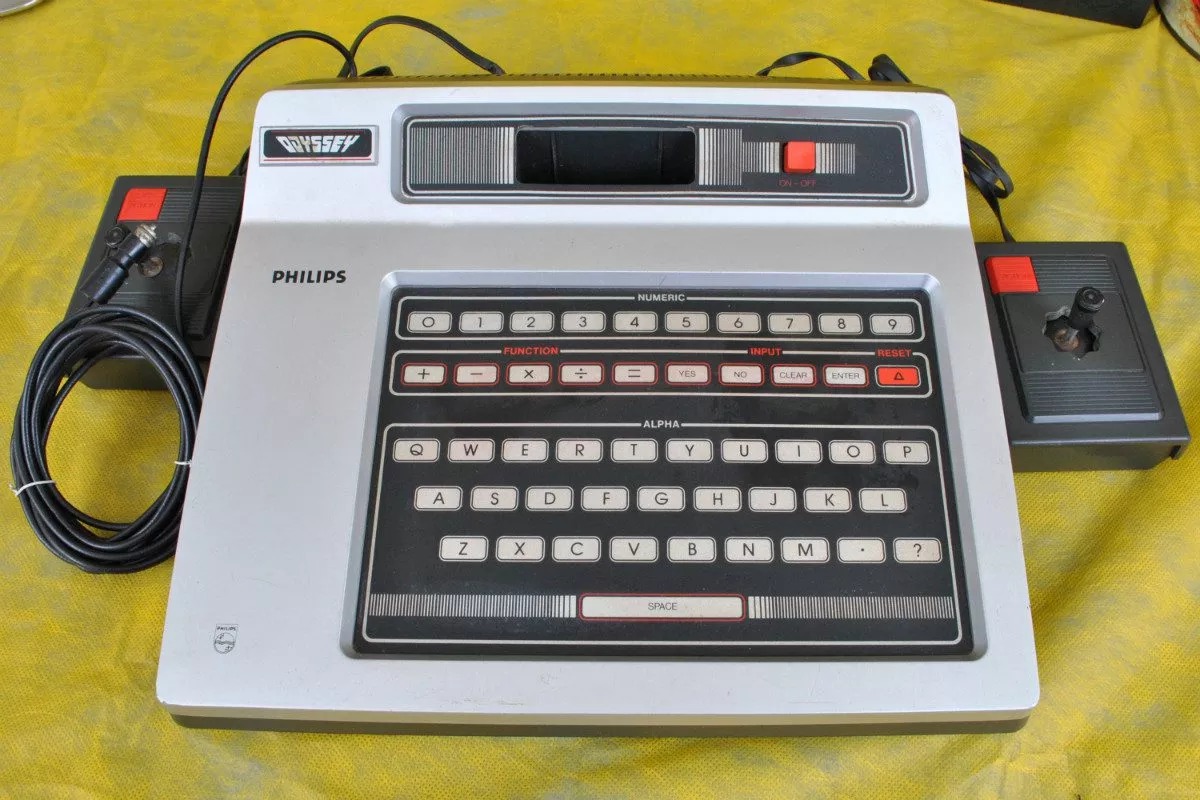

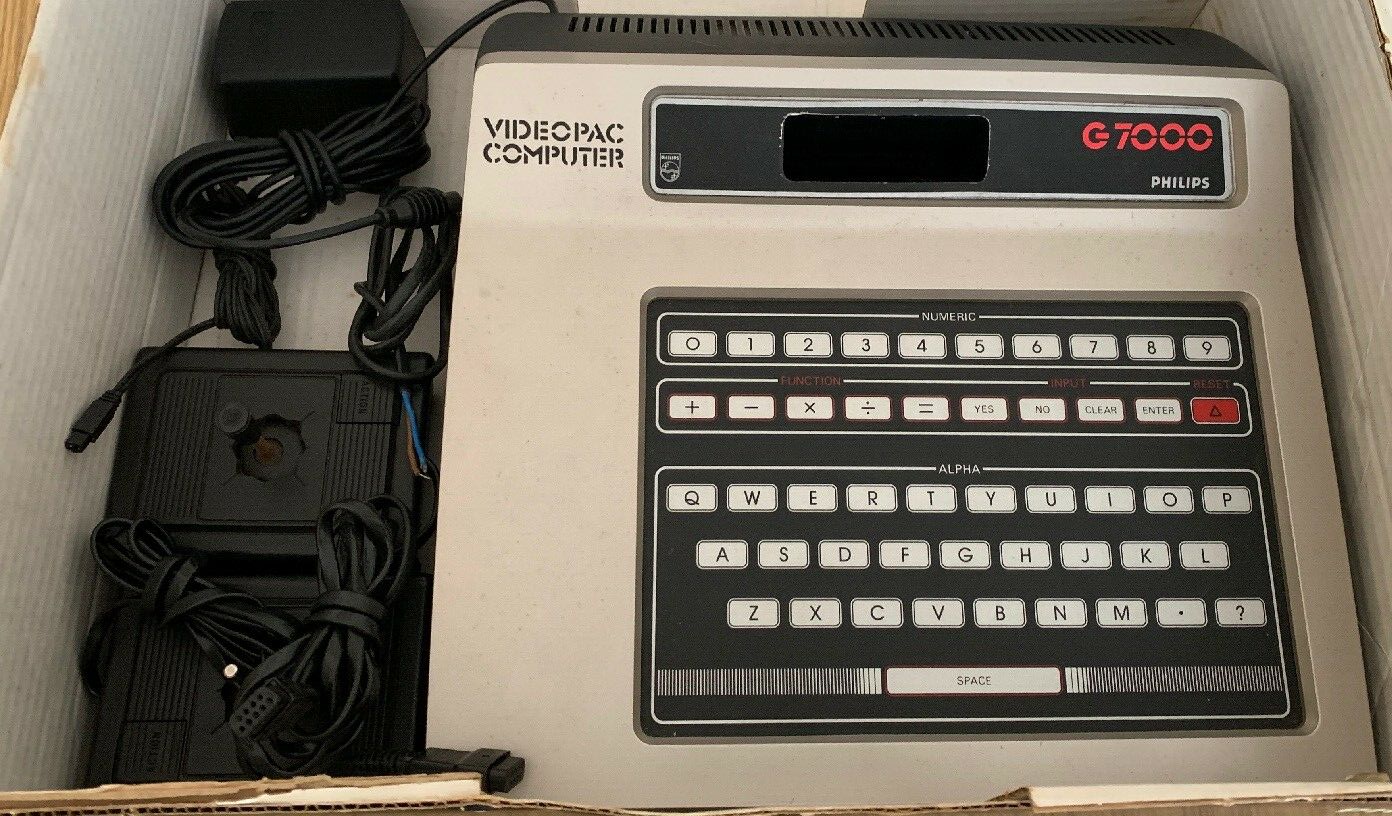

La Magnavox Odyssey², conocida en Europa como Philips Videopac G7000, en Brazil Philips Odyssey, en Estados Unidos Magnavox Odyssey² y Philips Odyssey², es una consola de 1978.

Características

Software Integrado  	None
Mandos  	Two 8-directions self-centered joysticks with fire button
CPU  	Intel 8048 microControlador
Velocidad  	1.79 MHz
Co-procesador  	Video Pantalla Controlador (VDC): Custom Intel IC generating all audio & video
RAM  	64 bytes (8048 internal RAM) + 128 bytes
ROM  	1 KB (system BIOS)
Modo gráfico  	154 x 100
Colores  	12
Sonido  	Beeper
Puertos de entrada/salida  	Cartridge slot
Almacenamiento  	Cartridges
Número de juegos  	49 (47 from Magnavox and 2 from Imagic)
Fuente de alimentación  	External Fuente de alimentación (12v, 600mA)
Perifericos  	The Voice (voice syntheDimensionesr), Chess Module

Historia

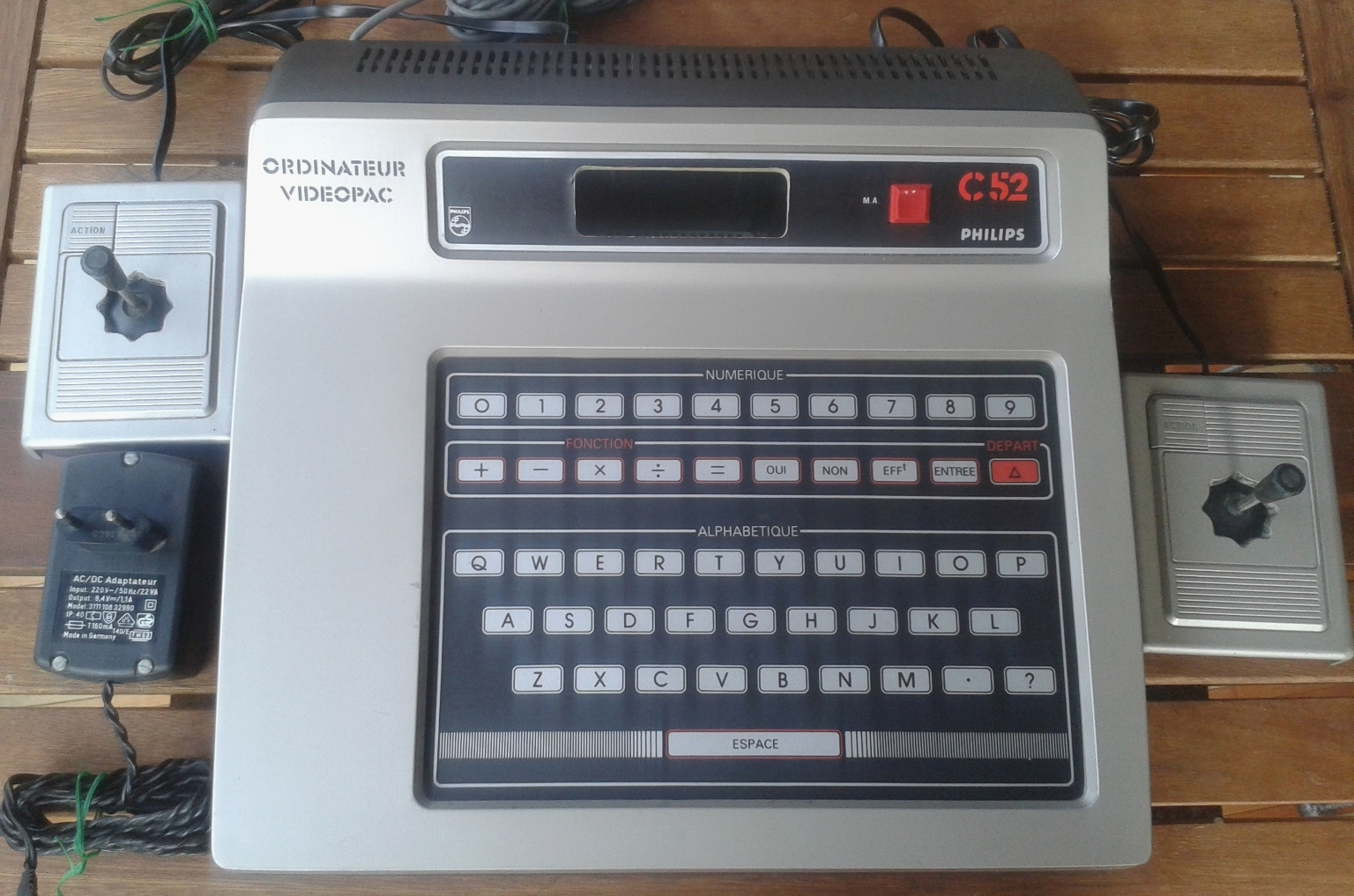

Versión francesa de la Videopac G7000

Historia

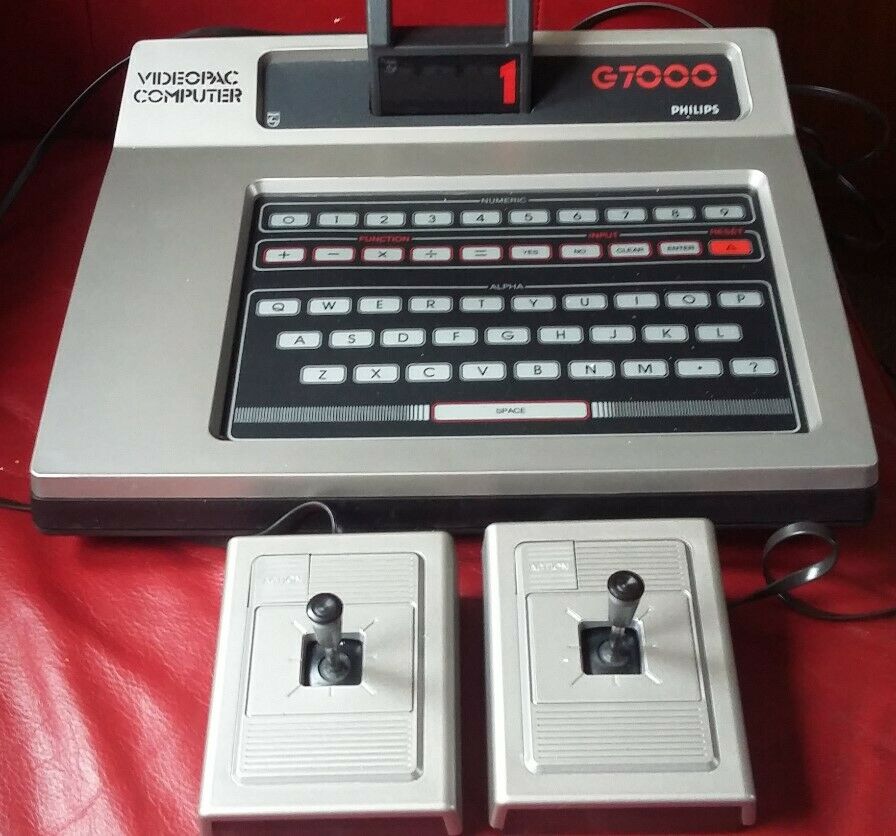

La aventura de Philips en el mundo de las consolas se inició con la compra de MagnaVox y su producto en el mercado, la Odyssey 2, que cambió de nombre para convertirse en VideoPac

Características

Processor: Intel 8048 Speed: 3.57 Mhz
RAM: 256 Bytes + 64 Bytes in processor
ROM:
BIOS: 1K (Internal to processor)
Cartridges: 2K address space, 2 bank select inputs for up to 8K bankswitched carts
Sonido: Intel 8244 custom Audio/Video IC 24-bit shift register, clockable at 2 frequencies; noice generator
Graficos: Intel 8244 custom Audio/Video IC Graficos
RAM: 256 bytes of video control reigsters
Colors: 16 Sprites: 4, 8x8 pixel, 1 color
Background Graficos: 9x8 grid of lines or blocks. Each segment individually controllable 28 Character objects from predefined internal character set

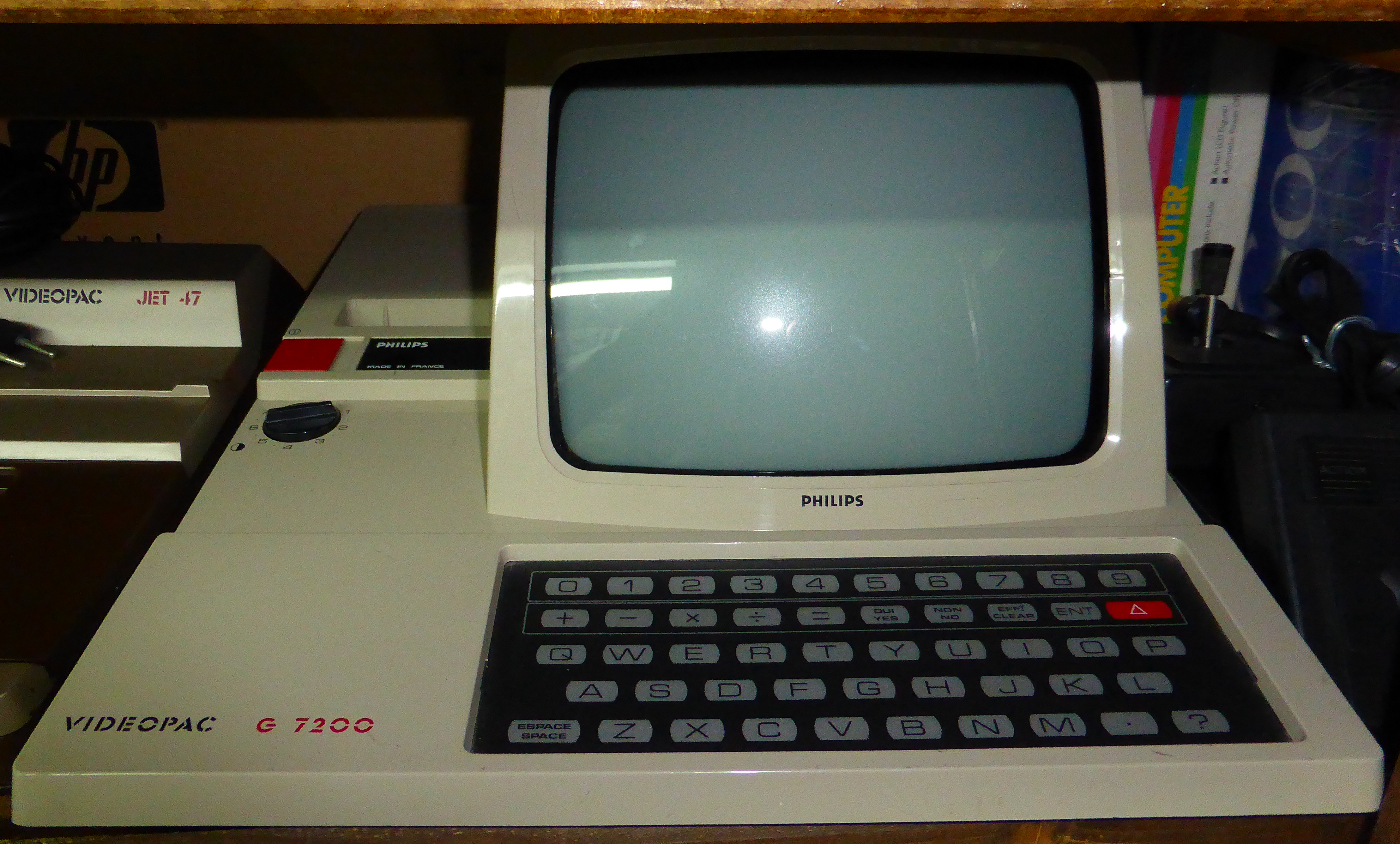

Características

Software Integrado  	None
Mandos  	Two 8-directions self-centered joysticks with fire button
CPU  	Intel 8048 microControlador
Velocidad  	1.79 MHz
Co-procesador  	Video Pantalla Controlador (VDC): Custom Intel IC generating all audio & video
RAM  	64 bytes (8048 internal RAM) + 128 bytes
ROM  	1 KB (system BIOS)
Modo gráfico  	154 x 100
Colores  	Black & white built-in Pantalla. 12 Colores using an external color Pantalla through video output
Sonido  	Beeper
Puertos de entrada/salida  	Cartridge slot, 2 x Controlador connectors, video output (SCART)
Almacenamiento  	Cartridges
Número de juegos  	More than 60 cartridges
Fuente de alimentación  	Built-in Fuente de alimentación unit
Precio  	1500 FF (France, jan. 1983)

Historia

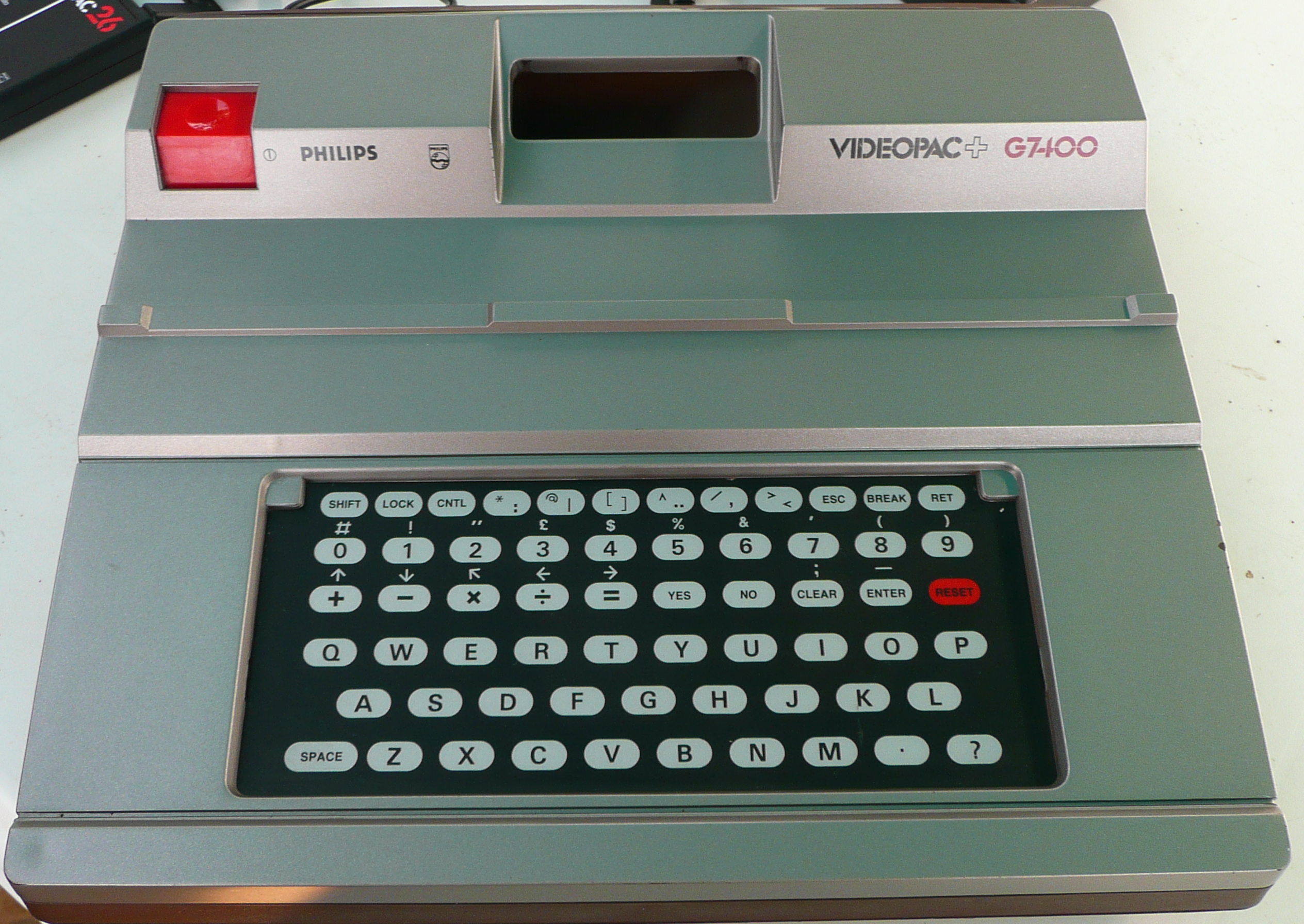

Heredera del legado de su hermana menor, la G7000, la familia del VideoPac no tuvo el éxito de su competidora, la Atari 2600. The Philips Videopac+ G7400 was a video game console released in limited quantities in 1983, and only in Europe; an American release as the Odyssey³ Command Center was planned but never occurred. The G7400 was the successor to the Philips Videopac G7000, the European counterpart to the American Magnavox Odyssey². The system featured excellently tailored background and foreground graphics. The G7400 could play three types of games: all normal G7000 games, special G7000 games with additional high-res background graphics that would appear only when played on the G7400, and G7400-only games with high-res sprites and backgrounds.

Características

CPU : Intel 8048 , 1.79 MHz
RAM: 16 KB
ROM: 16 KB
Display: 256x192x16
Audio: 1 channel, 8 sounds
Input / Output: RF modulator

Historia

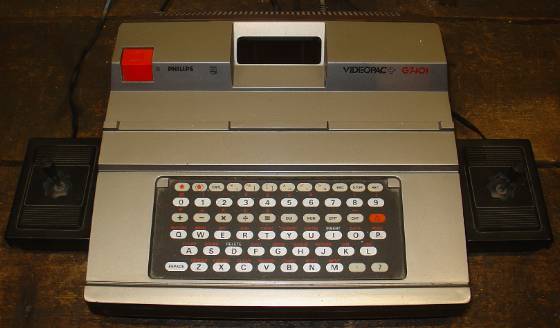

Variante de la G7400 con salida de euroconector

Historia

Version holandesa de la G7200
