Sanyo-MSX

Historia

MPC-10 (WAVY10): MSX1 computer, 32kB RAM, with light pen interface

Historia

PHC-28L: MSX1 computer, 64kB RAM, same as PHC-28S but with 64kB RAM and expansion slot on the back side PHC-28S: MSX1 computer, 16kB RAM

Características

Lenguajes  	Microsoft Extended Basic (MSX Basic V1.0)
Teclado  	Excellent QWERTY Teclado
CPU  	Z80A
Velocidad  	3,6 Mhz
RAM  	PHC-28 L : 64 kb
PHC-28 S : 32 kb
VRAM  	16 kb
ROM  	32 kb BASIC/BIOS ( MSX BASIC V1.0)
Modos de Texto  	Mode 0 : 40 x 24
Mode 1 : 32 x 24
Modo gráfico  	Mode 2 : 256 x 192 with 16 Colores (Hires mode)
Mode 3 : 64 x 48 with 16 Colores (Multi colour mode)
32 sprites
Colores  	16
Sonido  	General Instruments AY-3-8910 Programmable Sonido Generator
3 channels, 8 octaves
Puertos de entrada/salida  	2 joystick sockets
2 cardridge slots
Tape-recorder plug (1200/2400 bauds)
RGB video output
Centronics interface
Monitor video out
OS  	MSX DOS
Fuente de alimentación  	Built-in Fuente de alimentación
Precio  	16 KB model = 1750 FF (France, jan.1986)
32 KB model = 1850 FF (France, jan.1986)
64 KB model = 1990 FF (France, jan.1986)

Historia

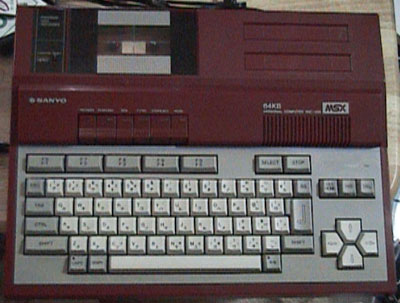

PHC-30: MSX1 computer, 16kB RAM, built in tape recorder PHC-30N: MSX1 computer, 64kB RAM, built in tape recorder

Historia

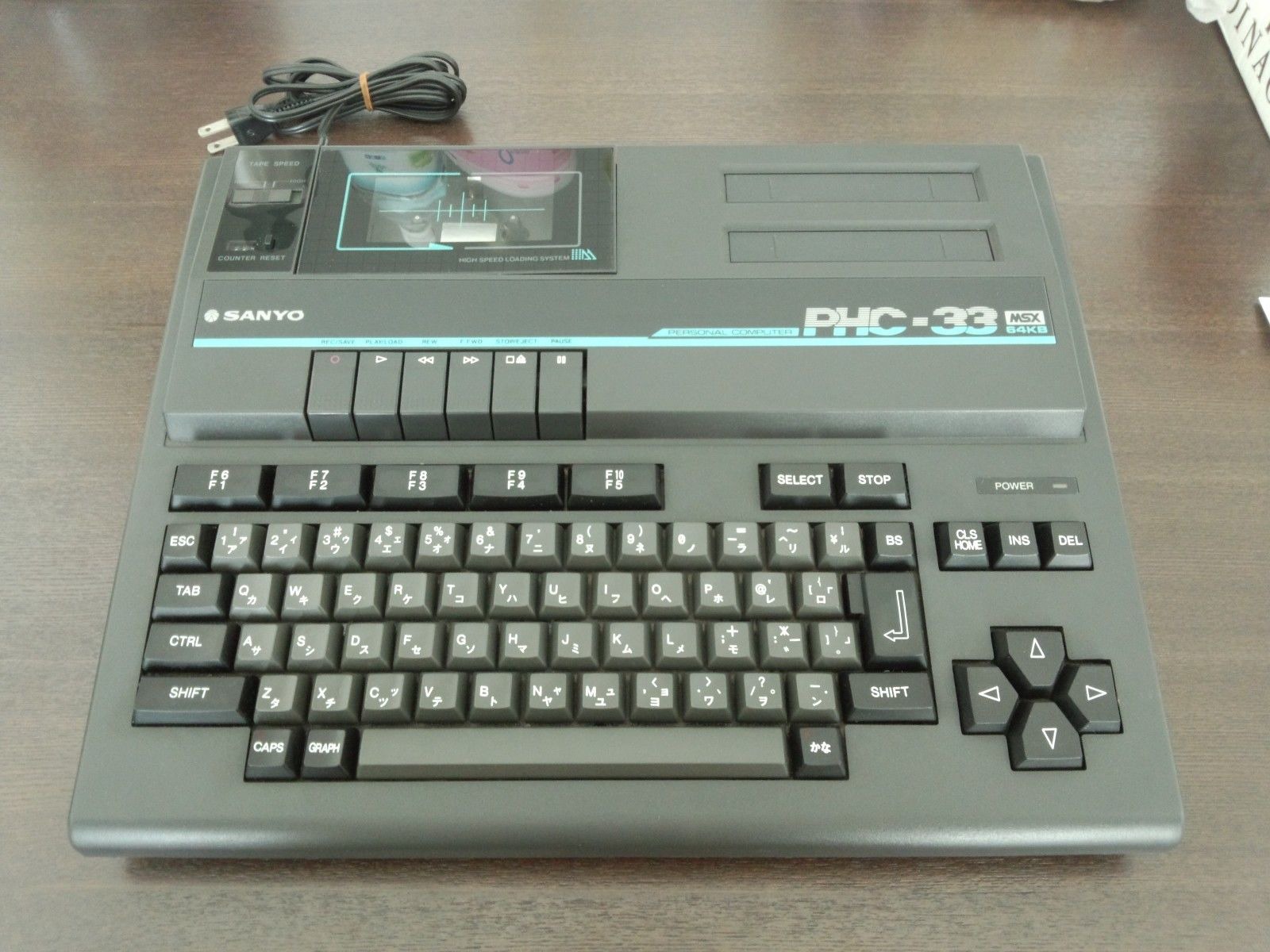

PHC-33: MSX1 computer, 64kB RAM, built in tape recorder

Características

Lenguajes  	Microsoft Extended Basic (MSX Basic V1.0)
Teclado  	Excellent QWERTY full-stroke Teclado with arrow and function Teclas
CPU  	Z80A
Velocidad  	3,6 Mhz
RAM  	64 kb
VRAM  	16 kb
ROM  	32 kb BASIC/BIOS ( MSX BASIC V1.0)
Modos de Texto  	Mode 0 : 40 x 24
Mode 1 : 32 x 24
Modo gráfico  	Mode 2 : 256 x 192 with 16 Colores (Hires mode)
Mode 3 : 64 x 48 with 16 Colores (Multi colour mode)
32 sprites
Colores  	16
Sonido  	General Instruments AY-3-8910 Programmable Sonido Generator
3 channels, 8 octaves
Puertos de entrada/salida  	2 joystick sockets, 2 cardridge slots, expansion bus, Tape-recorder plug (1200/2400 bauds), audio / video output, Centronics interface, RF video output
Almacenamiento interno  	Tape-recorder
OS  	MSX-DOS
Fuente de alimentación  	Built-in Fuente de alimentación

Historia

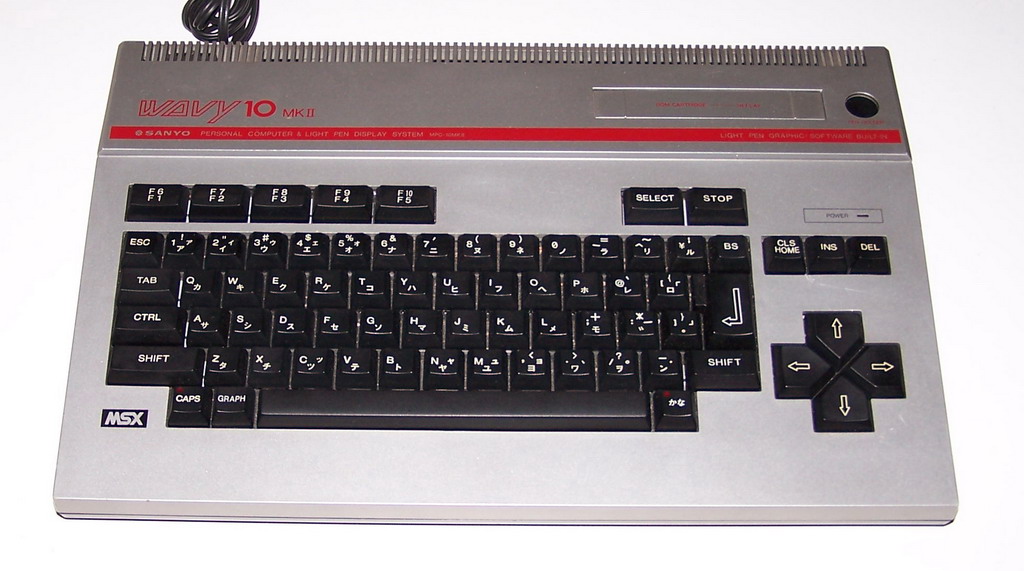

MPC-10mk2: MSX1 computer, 32kB RAM, lightpen-interface

Historia

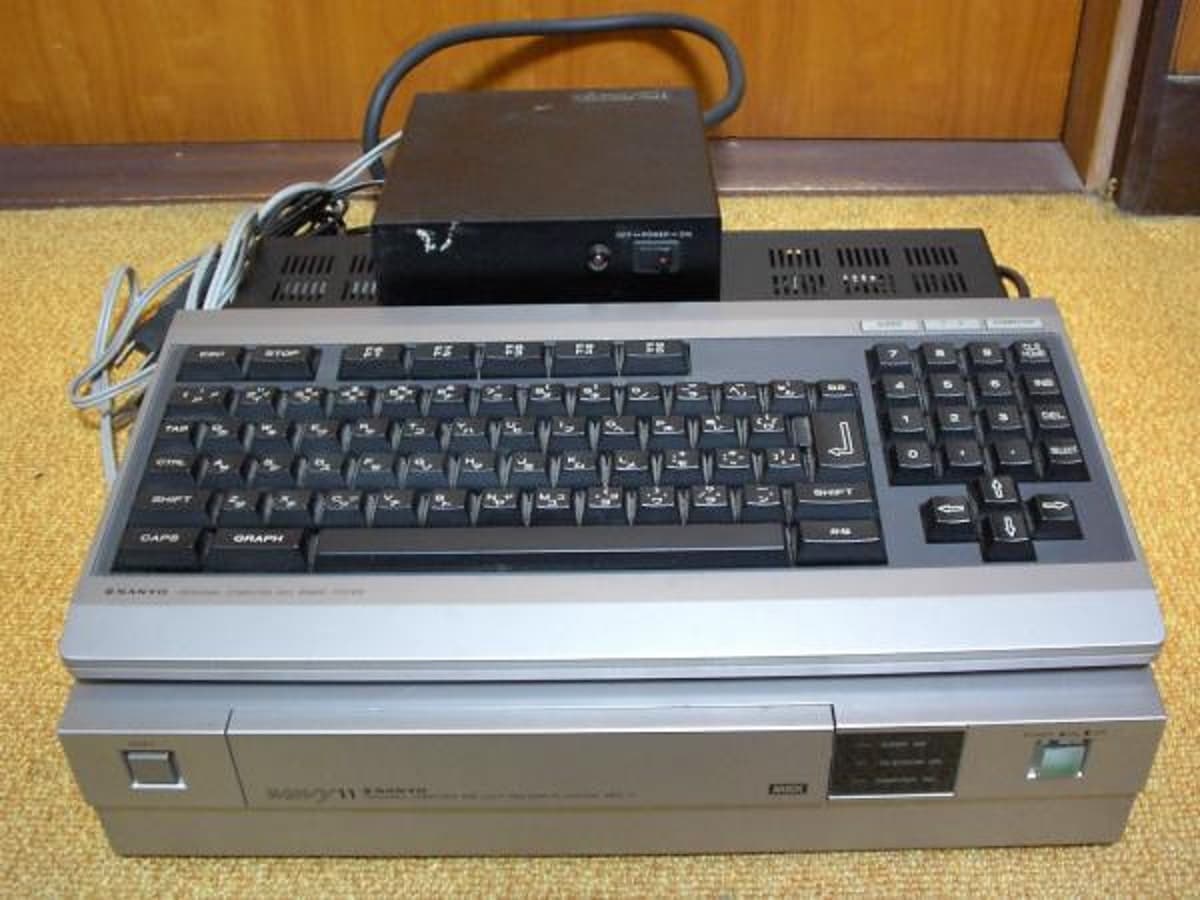

MPC-11 (WAVY11): MSX1 computer, 32kB RAM, 1 cartridge slot, available in two colors (silver and black), superimpose function, RGB out, lightpen-interface

Historia

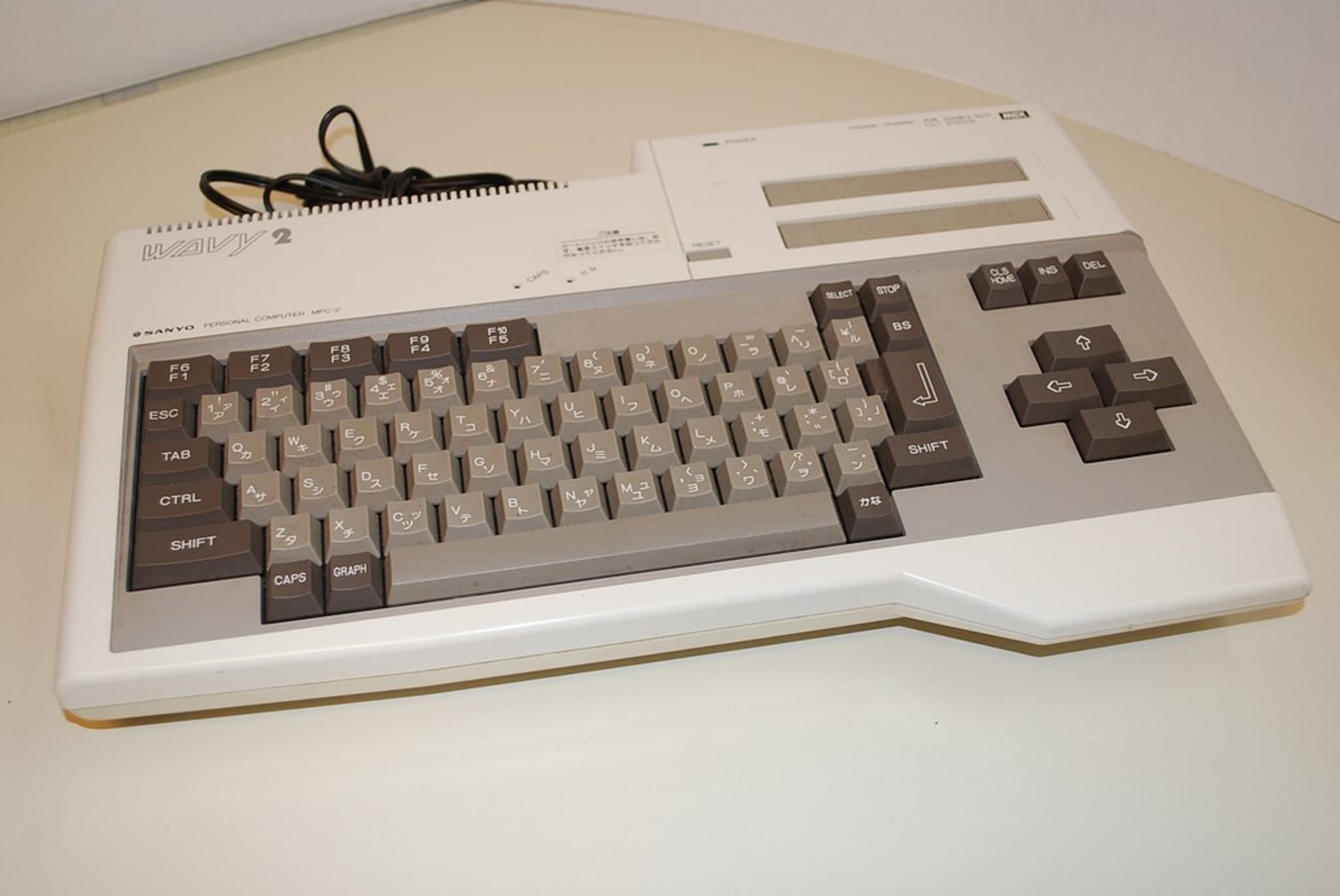

MPC-2 (WAVY2): MSX1 computer, 16kB RAM

Historia

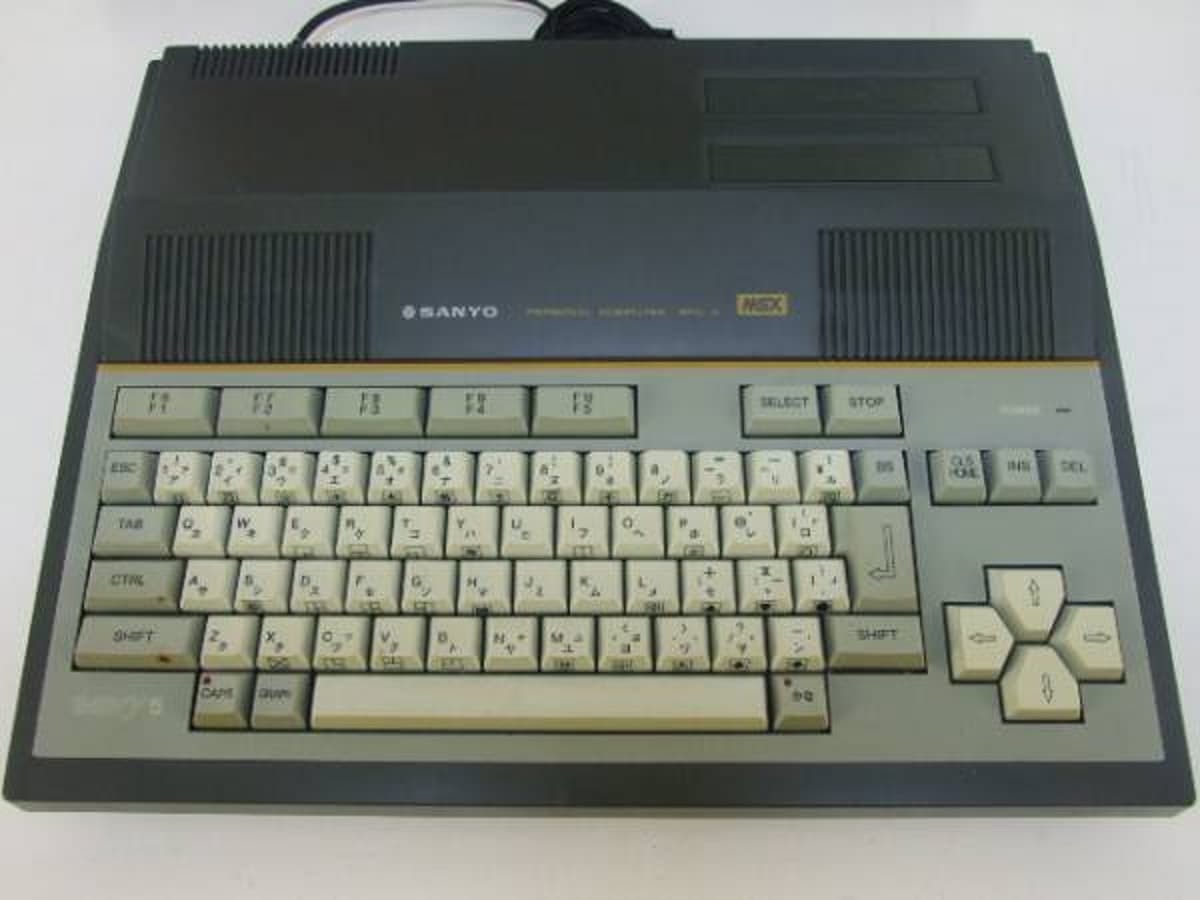

MPC-5 (WAVY5): MSX1 computer, 16kB RAM

Historia

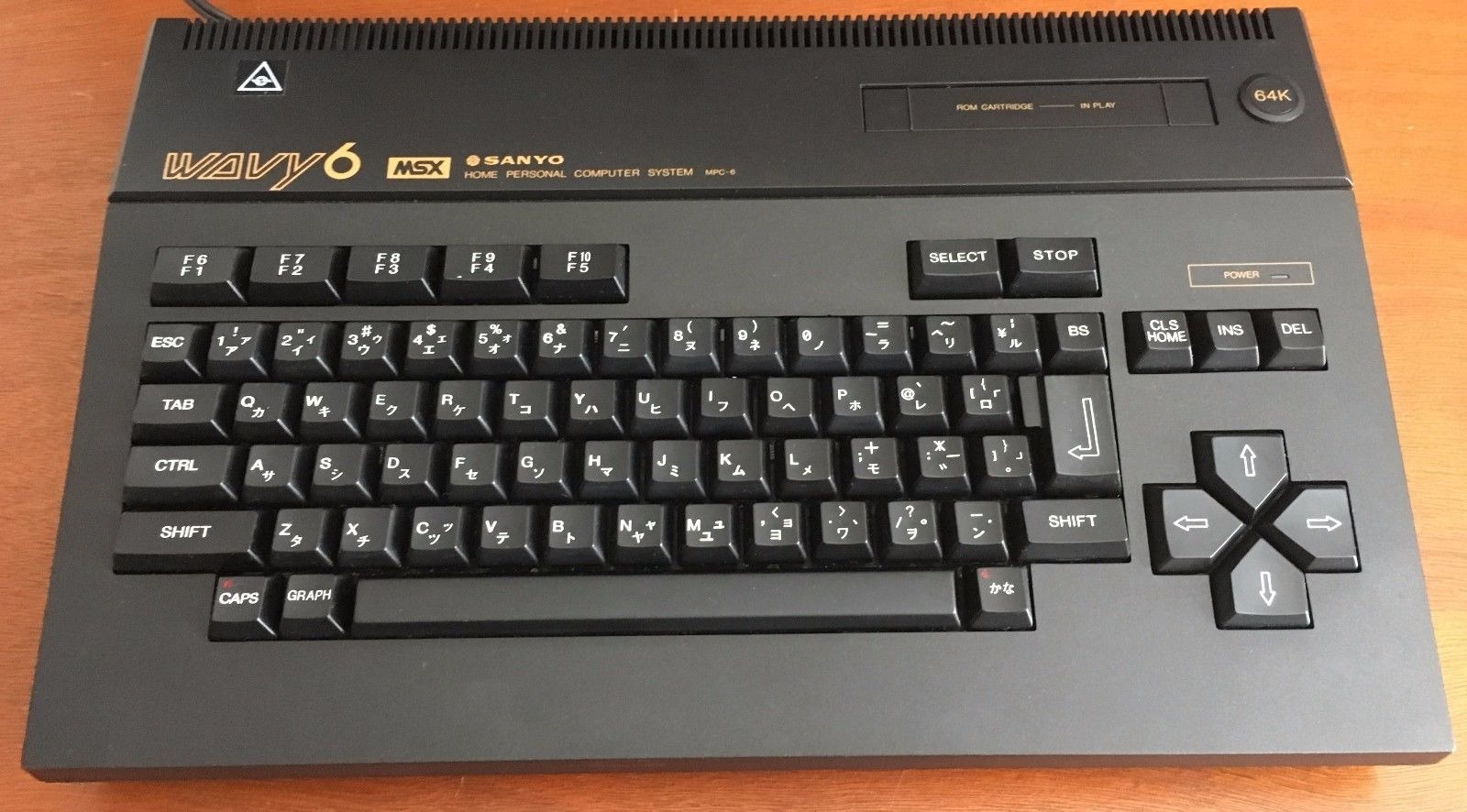

MPC-6 (WAVY6): MSX1 computer, 64kB RAM

Historia

SANNO was the name of a program ran by the SANNO Institute of Business Administration to computerize the Japanese schools. Under the SPC label (SANNO Primary Computer) three MSX systems were released; all were re-branded models from other manufacturers, Casio and Sanyo.

Historia

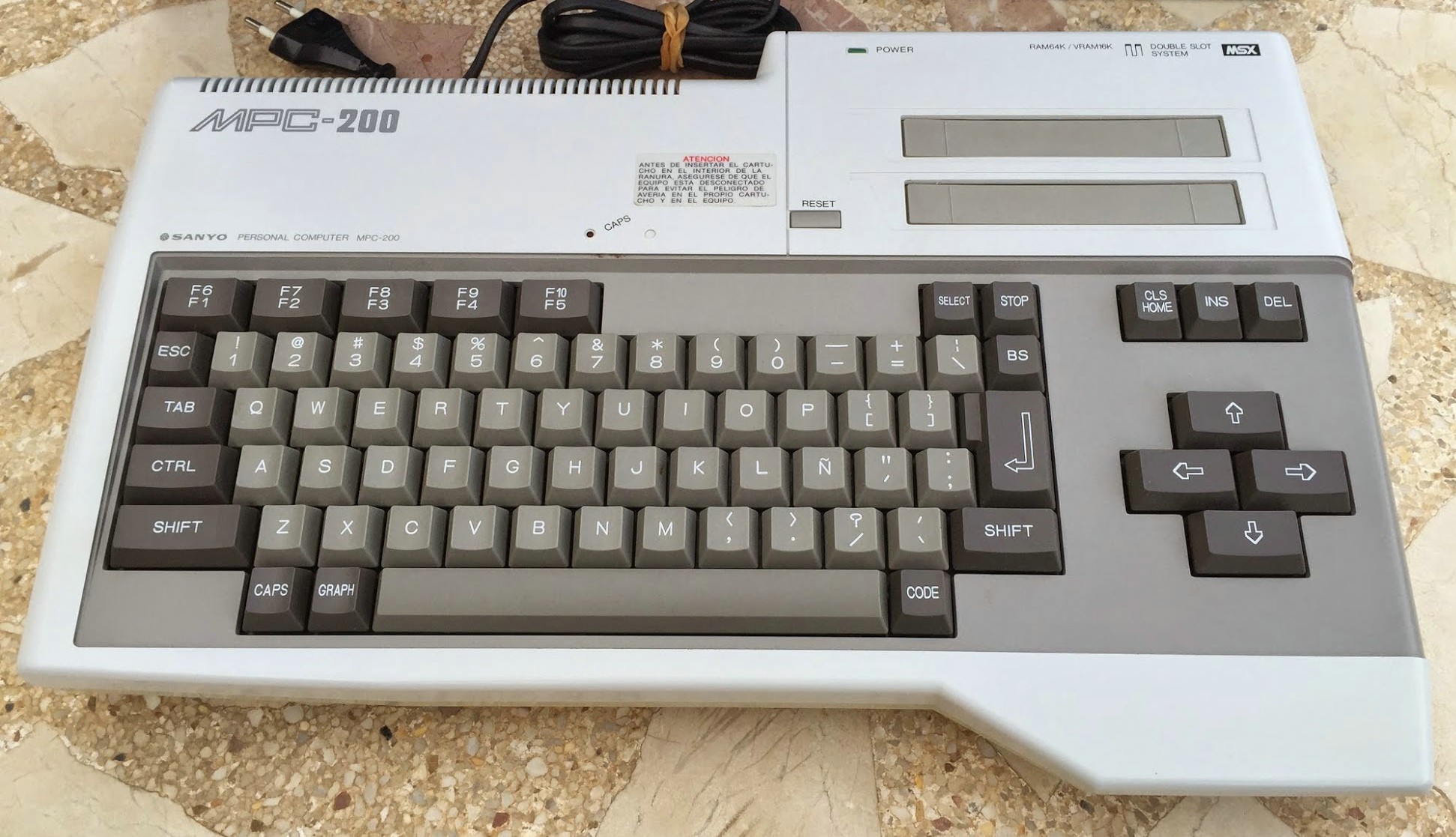

MPC-200: MSX1 computer, 64kB RAM

Historia

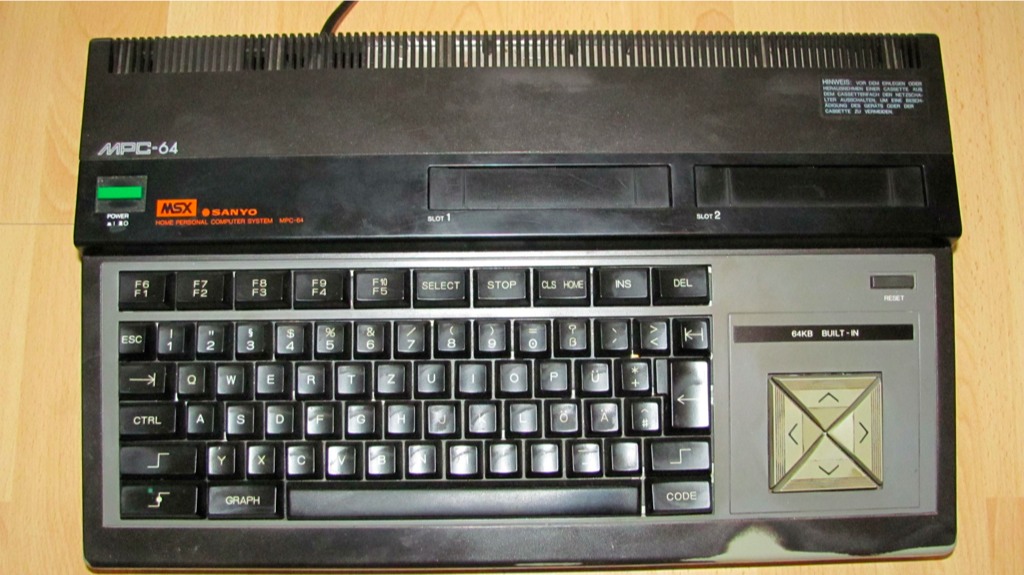

MPC-64: MSX1 computer, 64kB RAM

Historia

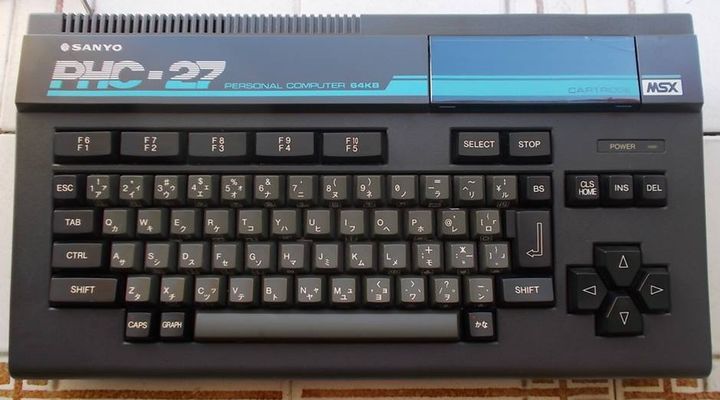

PHC-27: MSX1 computer, 64kB RAM

Historia

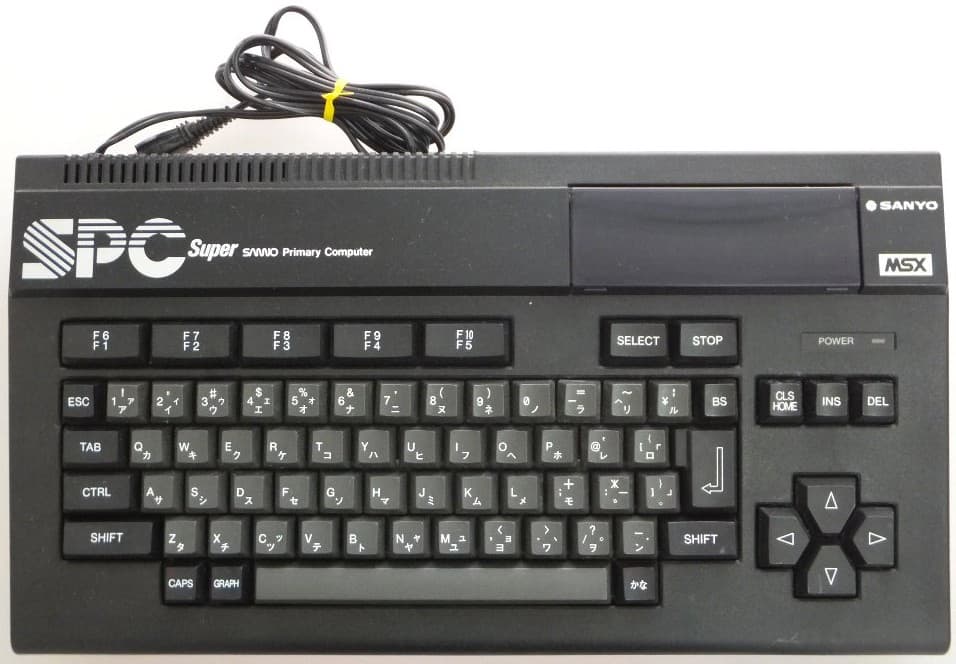

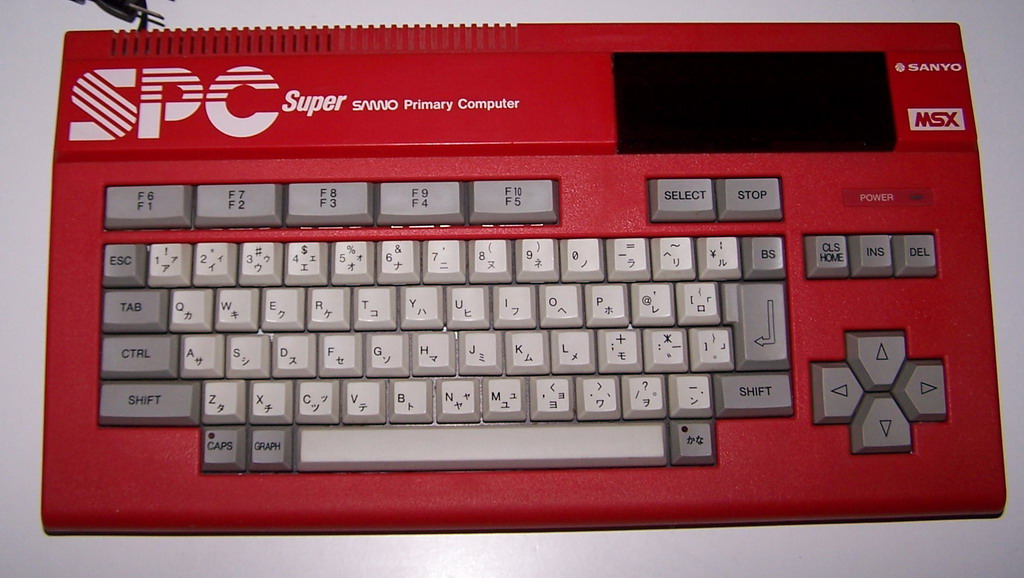

SPC-Super: MSX1 computer, 32kB RAM (seems similar to PHC-27), what is Sanno Primary Computer here?

Historia

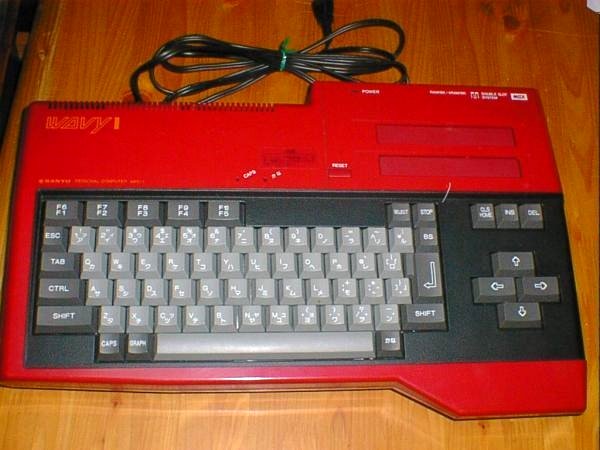

MPC-1 (WAVY1): MSX1 computer, 16kB RAM

Historia

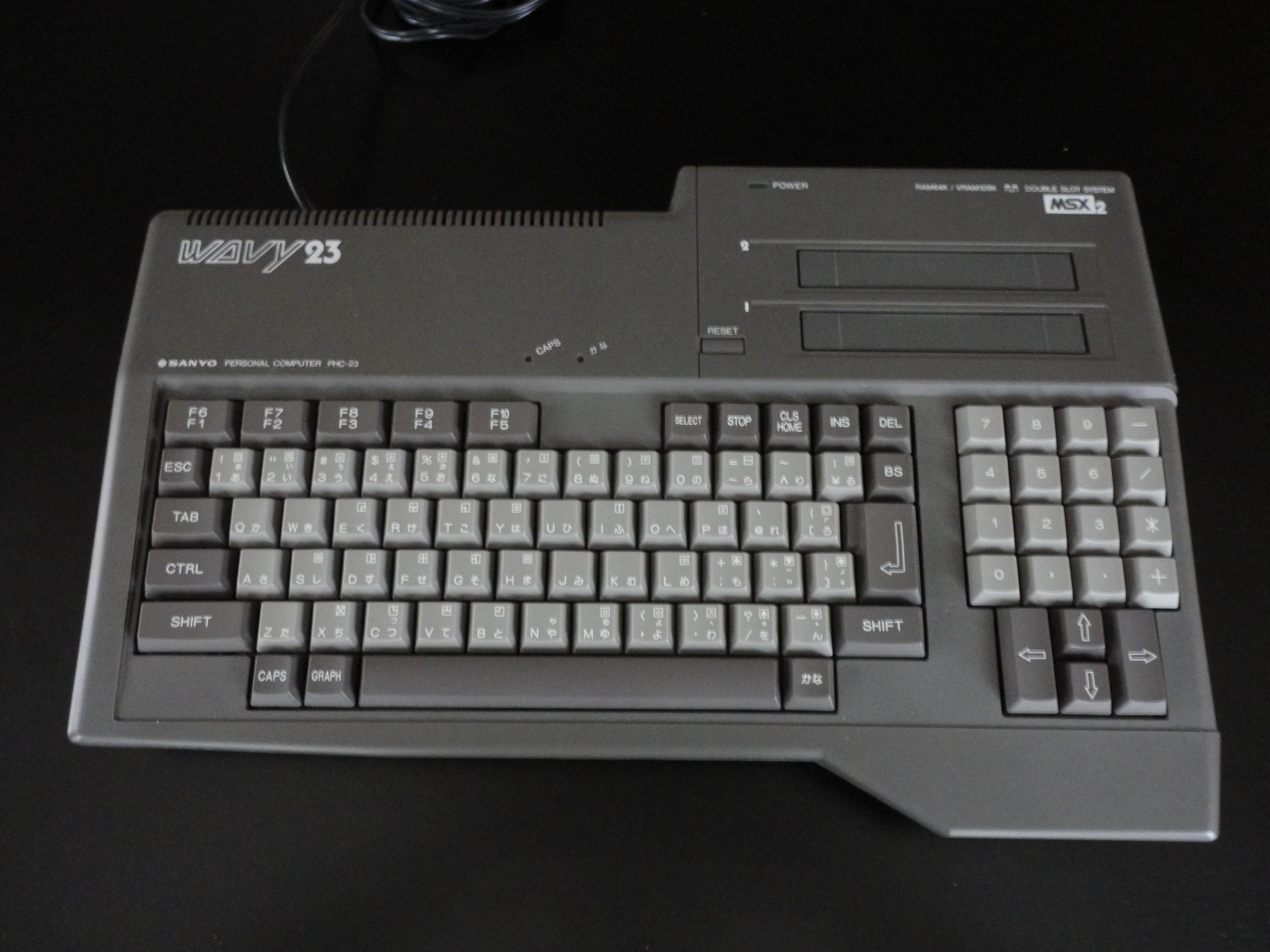

WAVY-MPC-23: MSX2 computer, 64kB RAM, 128kB VRAM, no disk drive

Historia

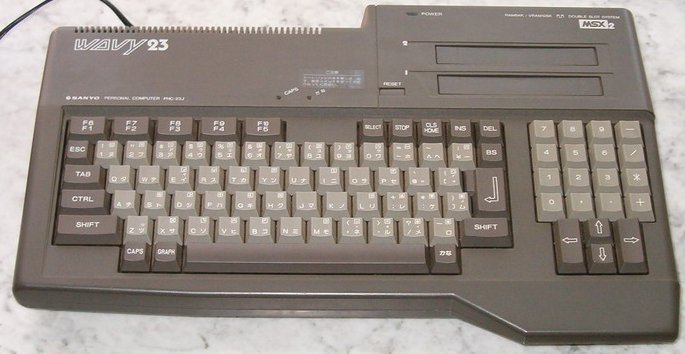

WAVY-PHC-23J(B): MSX2 computer, 64kB RAM, 128kB VRAM, JIS ROM

Historia

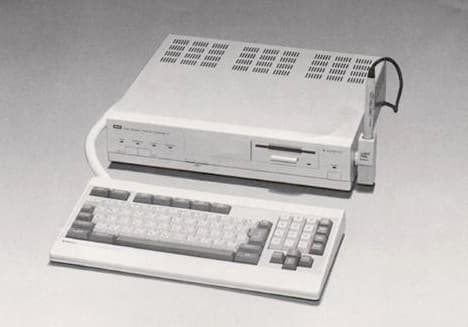

WAVY-MPC-27: MSX2 computer, ??kB RAM, ??kB VRAM, white desktop case, separate keyboard, 720kB floppy disk drive, light pen unit

Historia

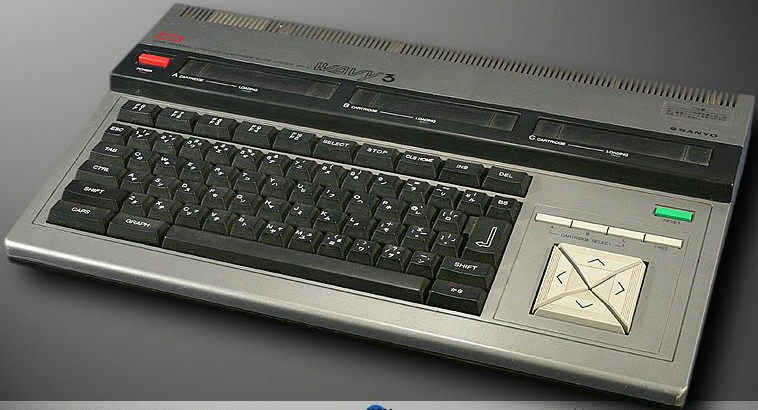

MPC-3 (WAVY3): MSX1 computer, 16kB RAM, with 3 cartridge slots and selector

Características

Lenguajes  	Microsoft Extended Basic (MSX Basic V1.0)
Teclado  	Full-stroke Teclado, including 5 F-Teclas with 10 Funciones and 4 arrow Teclas
CPU  	Zilog Z80A
Velocidad  	3.58 MHz
Co-procesador  	Video chip must be compatible with the Texas Instruments TMS 9918/A or TMS 9928/A (Japan : 60 Hz) or TMS 9929/A (Europe : 50 Hz)
RAM  	At least 8kB (most machines had 64kB Elementos internos)
VRAM  	16 kb
ROM  	32 kb BASIC/BIOS ( MSX BASIC V1.0)
Modos de Texto  	Mode 0 : 40 x 24
Mode 1 : 32 x 24
Modo gráfico  	Mode 2 : 256 x 192 with 16 Colores (Hires mode)
Mode 3 : 64 x 48 with 16 Colores (Multi colour mode)
32 sprites
Colores  	16
Sonido  	General Instruments AY-3-8910 Programmable Sonido Generator
3 channels, 8 octaves
Puertos de entrada/salida  	Joystick socket (1 or 2)
3 cardridge slots
Tape-recorder plug (1200/2400 bauds)
RGB video output
Centronics interface
OS  	MSX DOS

Historia

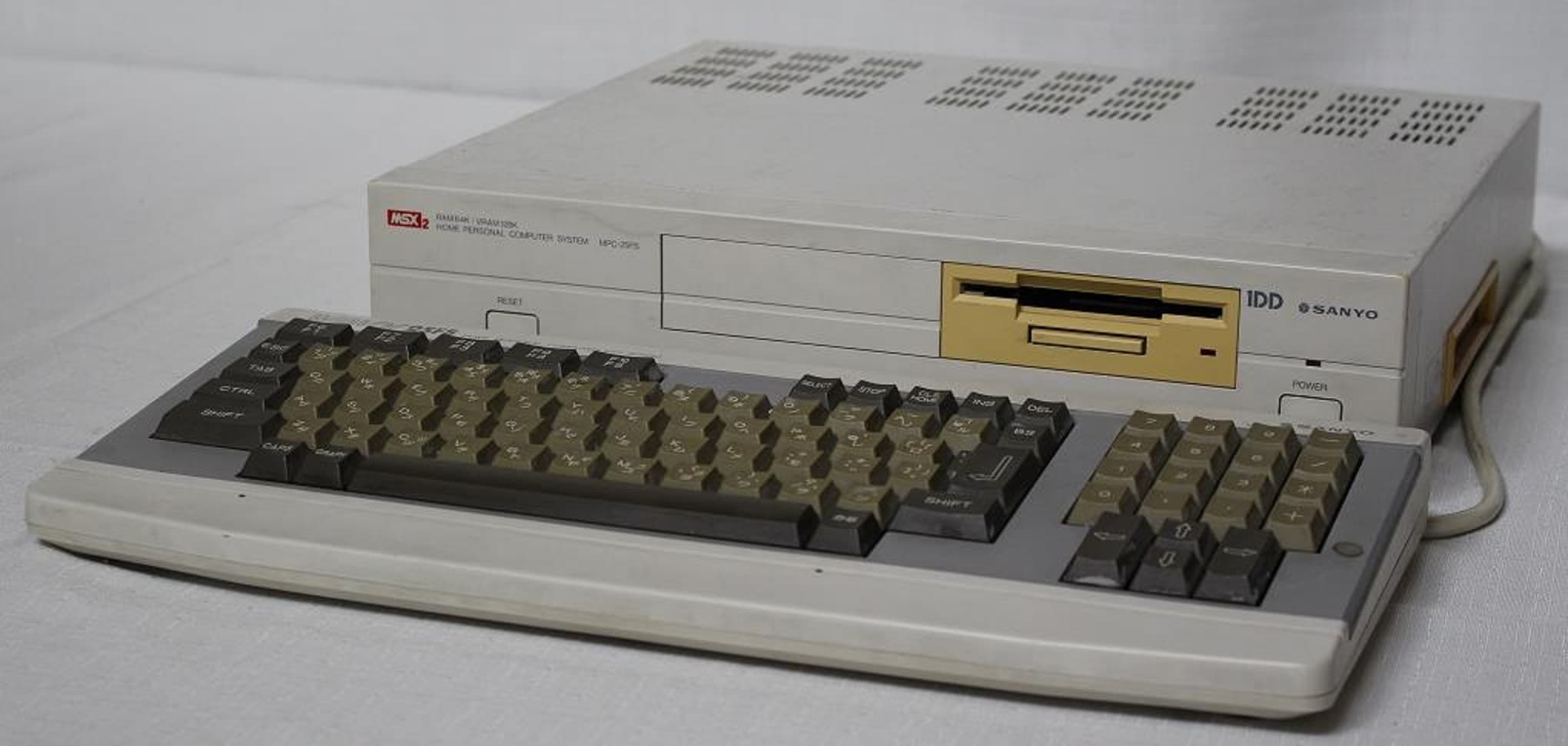

MPC-25F: MSX2 computer, 64kB RAM, 128kB VRAM, 360kB floppy disk drive MPC-25FD: MSX2 computer, 64kB RAM, 128kB VRAM, 720kB floppy disk drive MPC-25FK: MSX2 computer, 64kB RAM, 128kB VRAM, 720kB floppy disk drive MPC-25FS: MSX2 computer, 64kB RAM, 128kB VRAM, 720kB floppy disk drive, looks like Philips NMS-8250/55/80

Historia

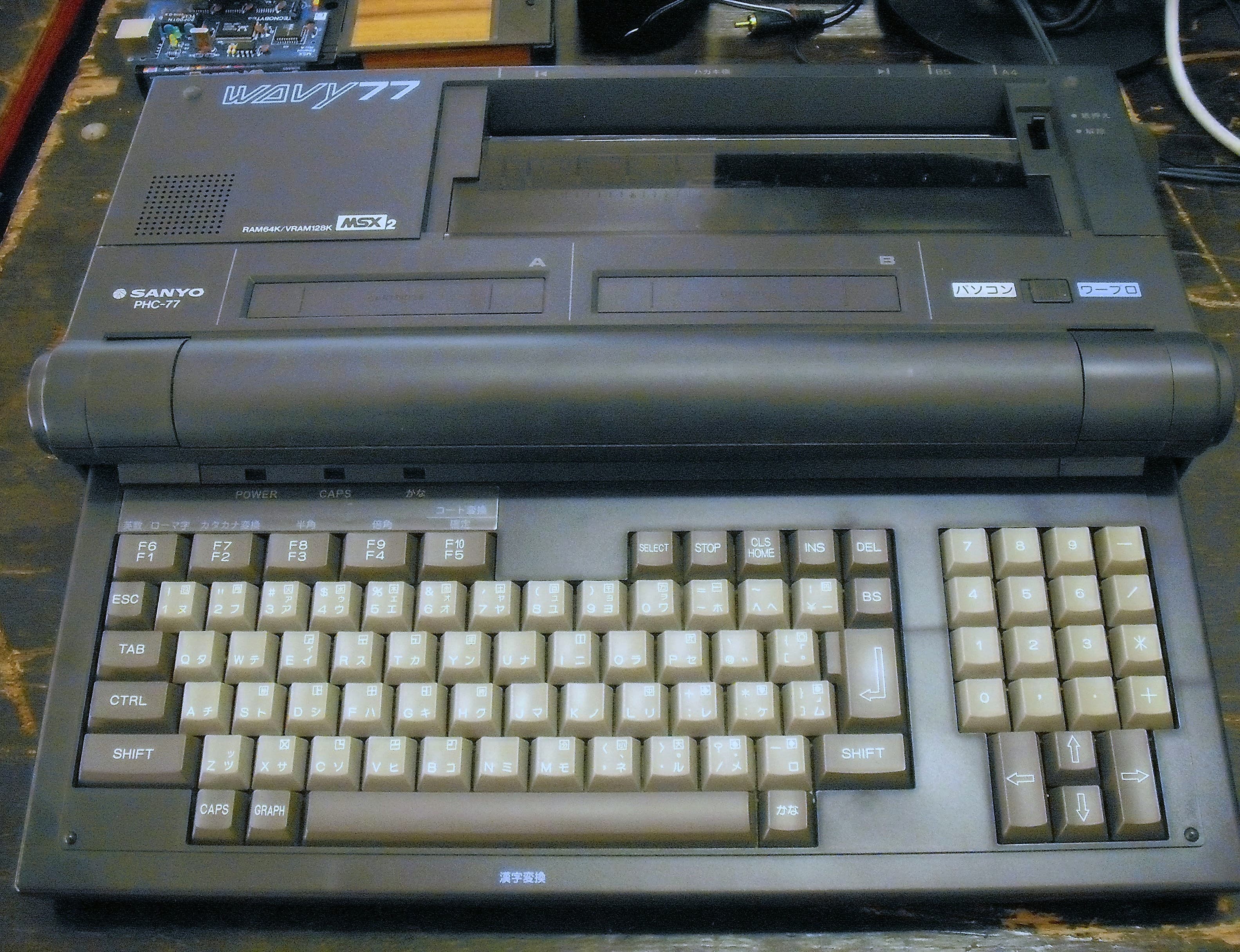

WAVY-PHC-77: MSX2 computer, 64kB RAM, 128kB VRAM, 720kB 3.5 floppy disk drive, portable MSX2 with built in printer

Historia

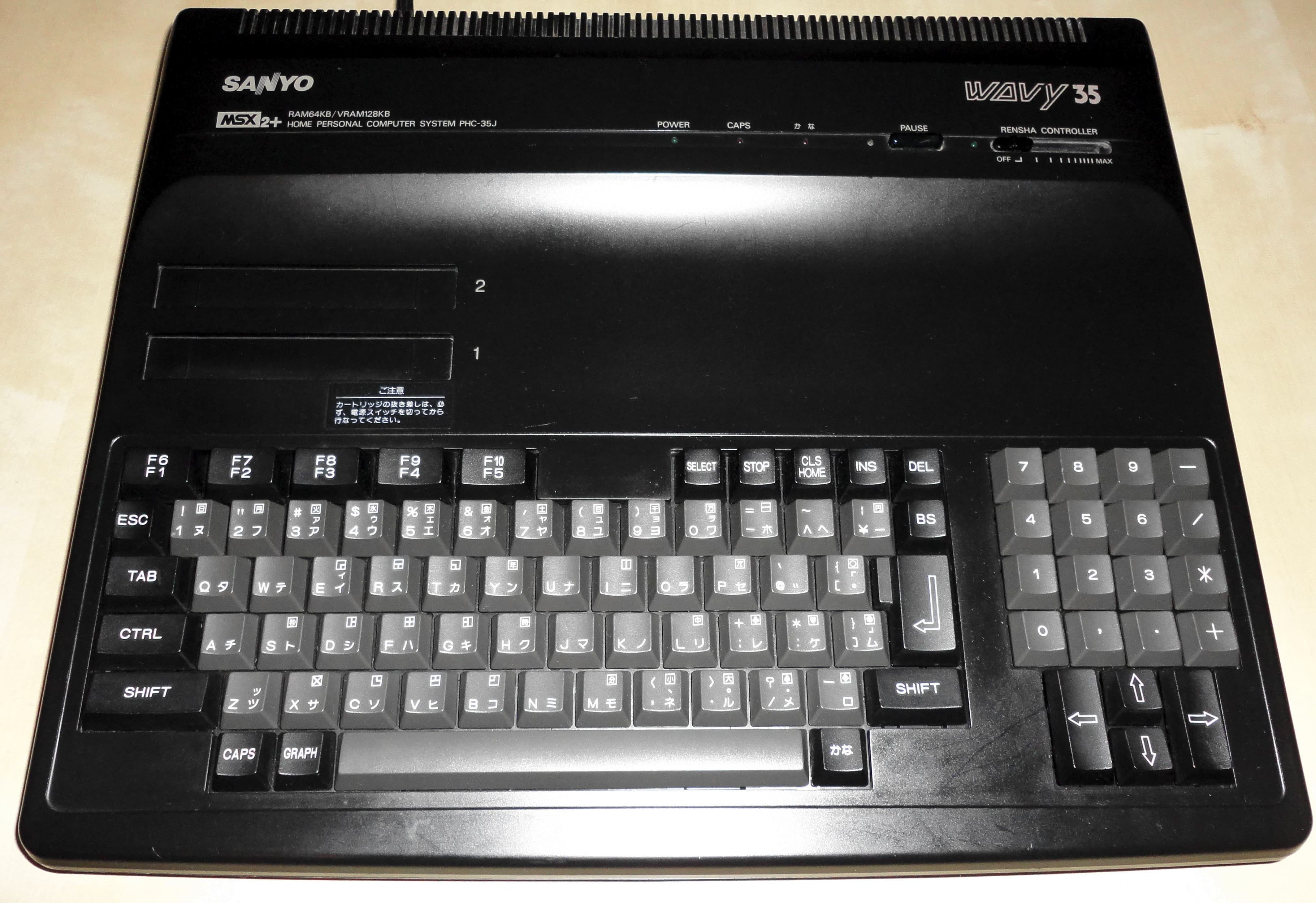

WAVY-PHC-35(J): MSX2+ computer, 64kB RAM, 128kB VRAM, 128kB JIS-1 ROM, Ren-Sha controller (autofire), hardware pause key

Historia

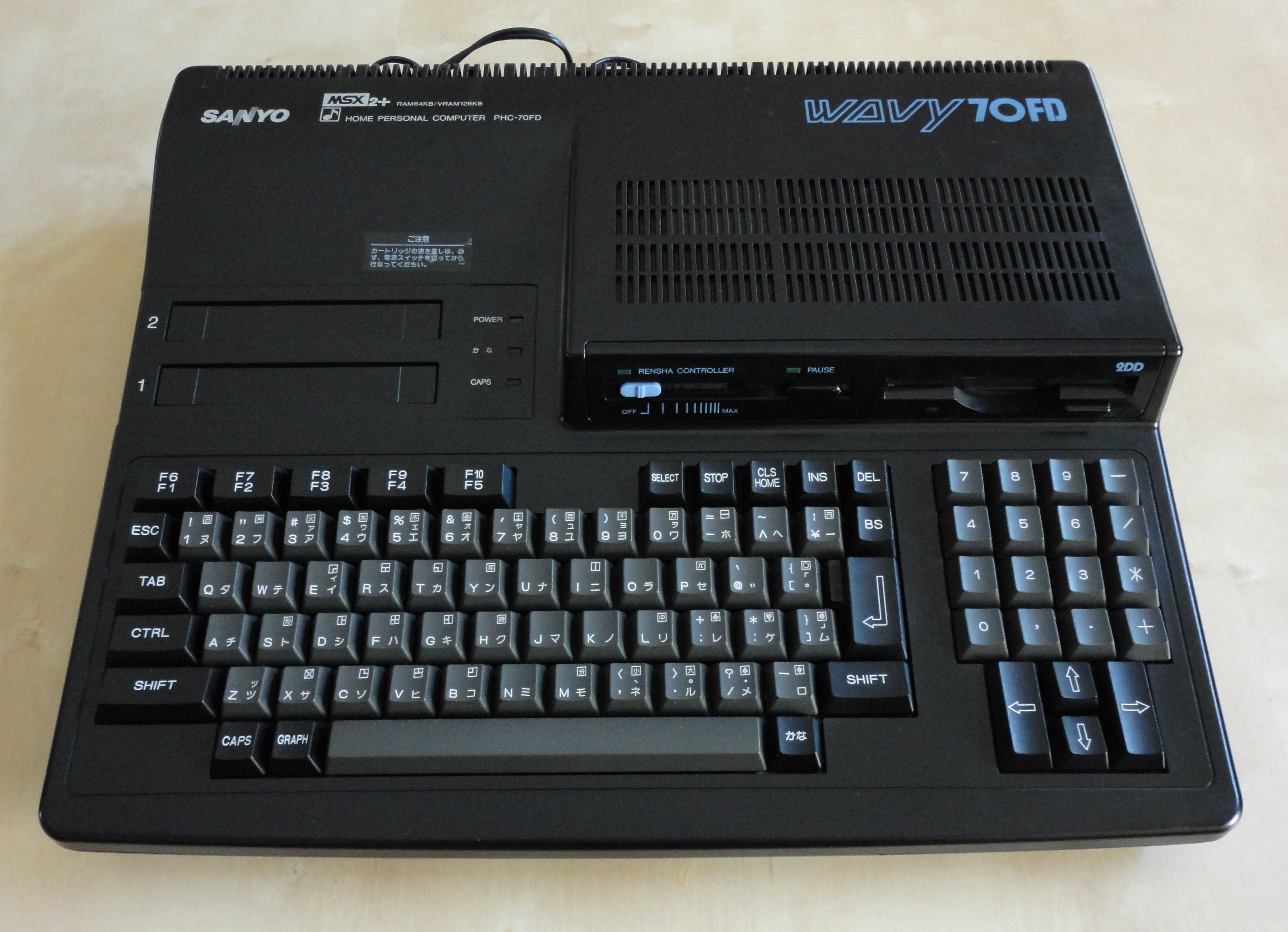

WAVY-PHC-70FD: MSX2+ computer, 64kB RAM, 128kB VRAM, 1 720kB 3,5 floppy disk drive, MSX Music, Ren-Sha controller (autofire), hardware pause key, 128kB JIS-1 ROM, built in MSX-BASIC Kun 2.x (run time basic compiler)

Historia

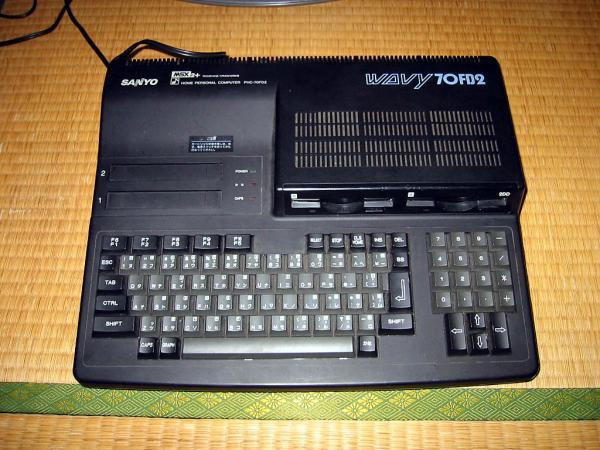

WAVY-PHC-70FD2: MSX2+ computer, 64kB RAM, 128kB VRAM, 2 720kB 3,5 floppy disk drives, MSX Music, built in MSX-BASIC Kun 2.x (run time basic compiler), 256kB JIS-1 and JIS-2 ROM, RGB connector (DIN)
