Nec-PC60

💾 Ordenadores4 fichas
más de Nec
🗂 Nec-PC80 ·4🗂 Nec-PC88 ·2🗂 Nec-PC98 ·9🗂 Nec-TK80 ·3

Máquinas (1–4 de 4)

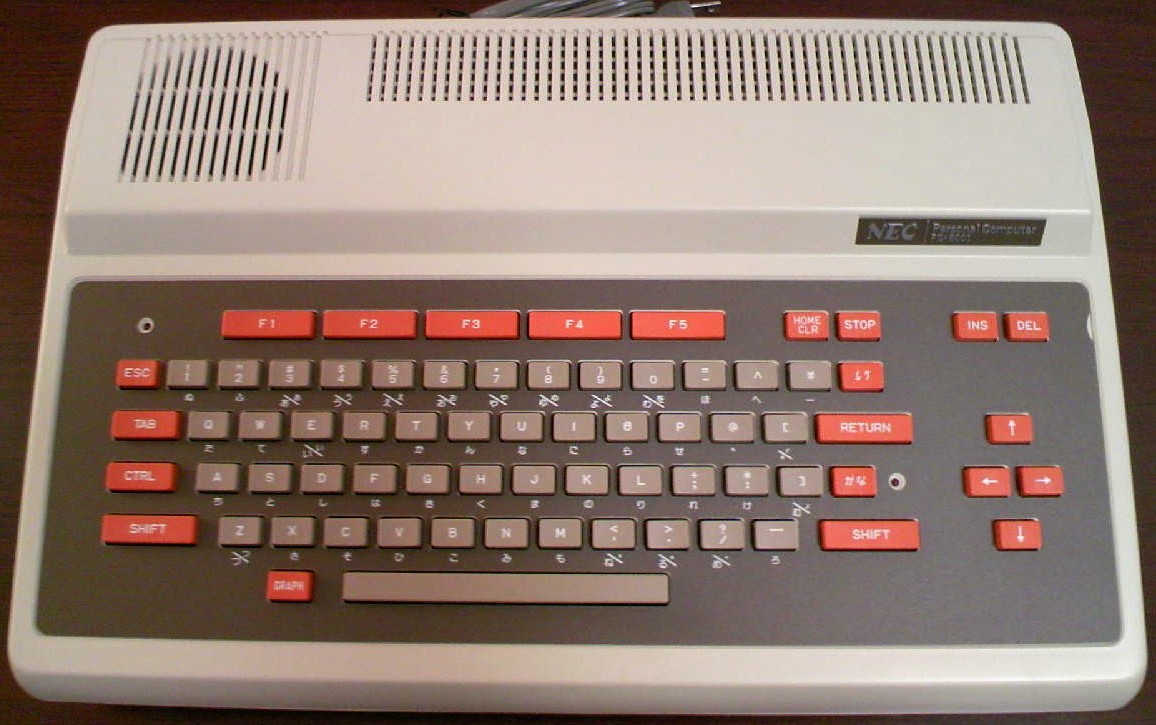

Nec PC-6001
Nec PC-6001
📅 1981🌍 Japon
Ficha técnica

Historia

The NEC PC 6001 is the first member of the great NEC PC family.

Características

Lenguajes  	Microsoft N60 Basic
Teclado  	Chicklet Teclado, 71 Teclas, JIS standard layout
CPU  	PD 780c-1 (compatible with Z80)
Velocidad  	3.8 MHz
Co-procesador  	M5C6847P-1 video generator (MC6847 compatible)
RAM  	16 KB (up to 32 KB)
ROM  	16 KB (Basic) + 4 KB (character ROM)
Modos de Texto  	32 x 16
Modo gráfico  	256 x 192 / 256 x 128 / 128 x 192 / 128 x 128 / 64 x 48
Colores  	monochrome (256 x 192) / 2 (128 x 192) / 9 (64 x 48)
Sonido  	three channels, 8 octaves (General Instruments AY-3-8910)
Puertos de entrada/salida  	Tape (600 / 1200 baud), RGB, Centronics, Joystick (2), ROM/RAM cartridges, Audio

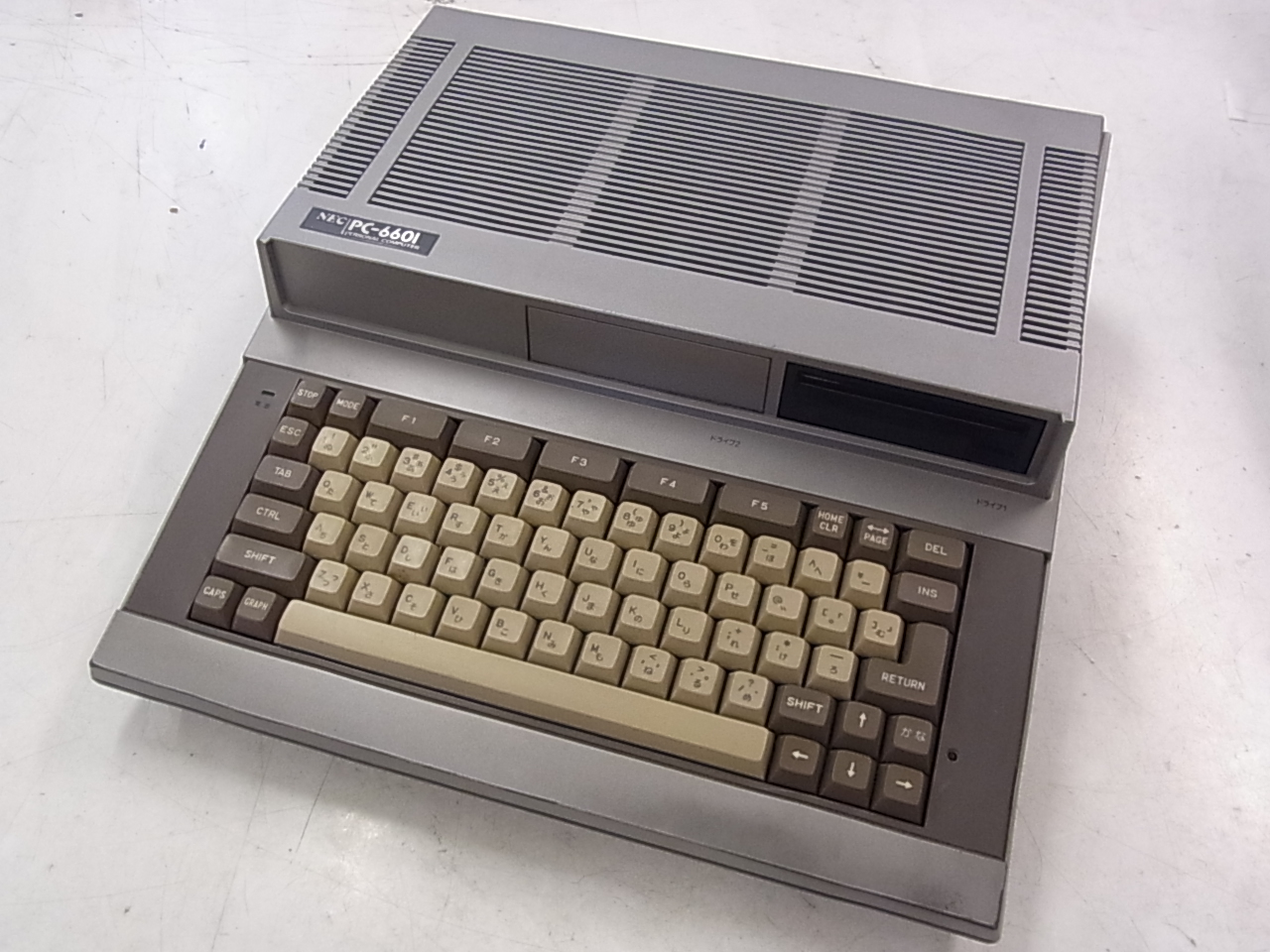

Nec PC-6601
Nec PC-6601
📅 1985🌍 Japon
Ficha técnica

Historia

The PC-6601 is basicaly a PC-6001 MK2 with a built-in 3.5 disk drive. The second optional disk drive could also be mounted. The N60m Basic od the PC-6001 MK2 has been enhanced to the N66 Basic. The japanese adverts focused on the fact that this computer could sing with its optional speech synthesizer!

Características

Lenguajes  	N66 Basic + machine language monitor
Teclado  	Full-stroke Teclado, JIS standard layout, 5 function Teclas
CPU  	ìPD780C-1 (Z80A compatible)
Velocidad  	4 Mhz
Co-procesador  	ìPD8049 (8 Mhz)
RAM  	64 KB + 1KB (loppy disk interface)
VRAM  	50 KB ?
ROM  	32 KB (Basic + machine language monitor) + 32 KB (chinese characters) + 16 KB (voice data) + 16 KB
Modos de Texto  	40 x 20
Modo gráfico  	80 x 40 (15 Colores), 160 x 200 (15 Colores), 320 x 200 (4 Colores)
Colores  	15
Sonido  	3 voices, 8 octaves (AY-3-8910)
optional speech syntheDimensionesr
Tamaño/Peso  	365 (W) ×380 (D) ×113 (H) mm / 4.5 Kg
Puertos de entrada/salida  	Tape interface (600/1200 baud), RGB video output, composite video output, RF TV output, parallel interface, optional RS-232c interface
Almacenamiento interno  	One or two 3.5 floppy disk drive (SS/DD 143 KB)
Fuente de alimentación  	PSU built-in
Perifericos  	Grpahics tablet, speech syntheDimensionesr
Precio  	143 000 yen (Japan, 1985)

Página 1 de 1
